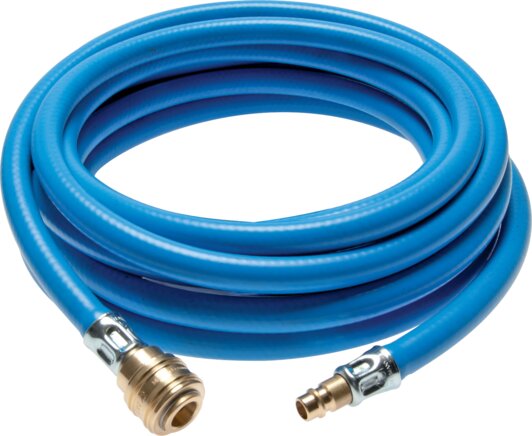

Compressed air hose 9 (3/8")x14,5mm (20m) Standard design with standard coupling
Item number:
P 9 SOFT-20 KDG
€93.12
incl. VAT
Quantity pcs
Item description
Materials:
Inner liner: PVC black, outside cover: PVC, fabric braiding: Polyester filament, produced silicone-free, certified by TÜV, coupling socket and coupling plug: Brass body with NBR seal
Operating range:
Compressed air hose for industry, workshop and fuel service station applications. Extremely flexible in all weather conditions, UV resistant. Suitable for use in drag chains.
Inner liner: PVC black, outside cover: PVC, fabric braiding: Polyester filament, produced silicone-free, certified by TÜV, coupling socket and coupling plug: Brass body with NBR seal
Operating range:
Compressed air hose for industry, workshop and fuel service station applications. Extremely flexible in all weather conditions, UV resistant. Suitable for use in drag chains.
Properties
| Version | Standard design with standard coupling |
| Hose length [MTR] | 20 |
| Hose diameter (inner) [mm] | 9 (3/8") |
| Hose diameter (outer) [mm] | 14,5 |
| Min. bend radius [mm] | 32 |
| Operating pressure at 20°C [bar] | 15 |
| Temperature range [°C] | -20 to +60 |
Further information on P9SOFT-20KDG
| Weight | 2,5 kg / pcs |
| GTIN | 4050571828745 |
| Customs duty number | 40094100 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 389) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
