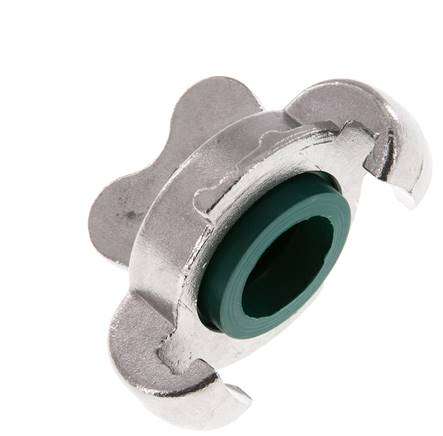

Item description
Temperature range:
Steel or malleable cast iron: -40°C to +95°C, stainless steel: -30°C to +200°C
Note:
Brass seals are preferably used right at the compressor to prevent sticking of the seals from high temperature. The seal is held reliably in the coupling through free blow-off through the screw. Always use a coupling with a rubber seal as the counter-coupling.
Steel or malleable cast iron: -40°C to +95°C, stainless steel: -30°C to +200°C
Note:
Brass seals are preferably used right at the compressor to prevent sticking of the seals from high temperature. The seal is held reliably in the coupling through free blow-off through the screw. Always use a coupling with a rubber seal as the counter-coupling.
Properties
| Material | 1.4401 |
| Seals | FKM |
| Usage | all compressor couplings |
| Replacement seals | SKG GU ES |
| Operating pressure [bar] | 16 |
Further information on VKOES
| Weight | 145 g / pcs |
| GTIN | 4050571161248 |
| Customs duty number | 73071990 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 334) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
