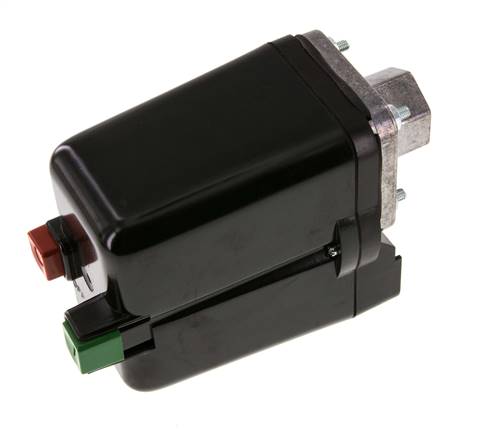

Compressor pressure switch G 1/2", 2 to 11 bar (with switch)
Item number:
MDR 5/11 K
Item description
Media:
Air, water (MDR 3 ... RM many other media also possible)
Protection class:
IP 54 (MDR 2: IP 44)
Electrical connection:
Cable clamps
Air, water (MDR 3 ... RM many other media also possible)
Protection class:
IP 54 (MDR 2: IP 44)
Electrical connection:
Cable clamps
Properties
| Pressure switch series | MDR 5 |
| Version | with switch |
| Setting range [bar] | 2 - 11 |
| Pressure connection (bottom) | G 1/2" |
| Motorschaltvermögen | 3-pin 230V - 4kW / 400V - 5.5kW |
| Note | Can only be used in conjunction with motor protection relay for switching on and off! |
Further information on MDR5/11K
| Weight | 800 g / pcs |
| GTIN | 4050571483449 |
| Customs duty number | 85364900 |
| RoHS compliant | Yes |
| Manufacturer | Condor |
YouTube videos:
Documents
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
