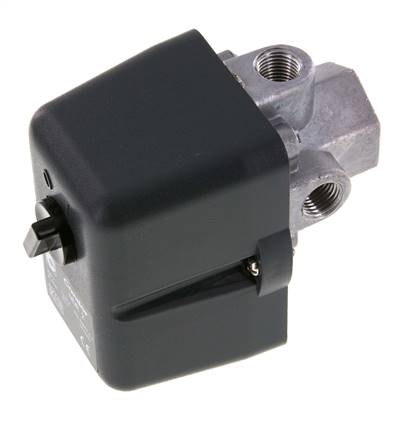

Compressor pressure switch G 1/4", 4 to 12 bar (with switch)
Item number:
MDR 2/11 K
Item description
Media:
Air, water (MDR 3 ... RM many other media also possible)
Protection class:
IP 54 (MDR 2: IP 44)
Electrical connection:
Cable clamps
Air, water (MDR 3 ... RM many other media also possible)
Protection class:
IP 54 (MDR 2: IP 44)
Electrical connection:
Cable clamps
Properties
| Pressure switch series | MDR 2 |
| Version | with switch |
| Setting range [bar] | 4 - 12 |
| Pressure connection (bottom) | G 1/4" |
| further pressure connections (lateral) | 3x G 1/4" |
| Motorschaltvermögen | 2-pin 230V - 2.2kW |
Further information on MDR2/11K
| Weight | 380 g / pcs |
| GTIN | 4050571483265 |
| Customs duty number | 85364900 |
| RoHS compliant | Yes |
| Manufacturer | Condor |
YouTube videos:
Documents
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
