Item description
Materials:
aluminium
Scope of delivery:

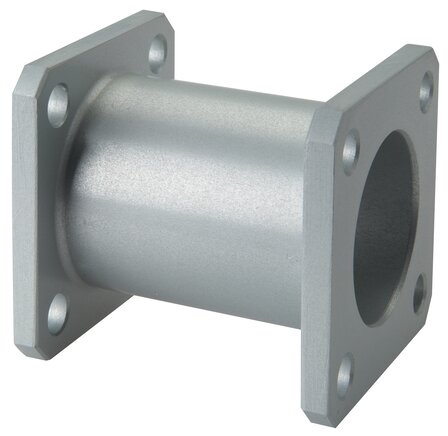

1 connecting piece including the necessary screws
aluminium
Scope of delivery:
1 connecting piece including the necessary screws
Properties

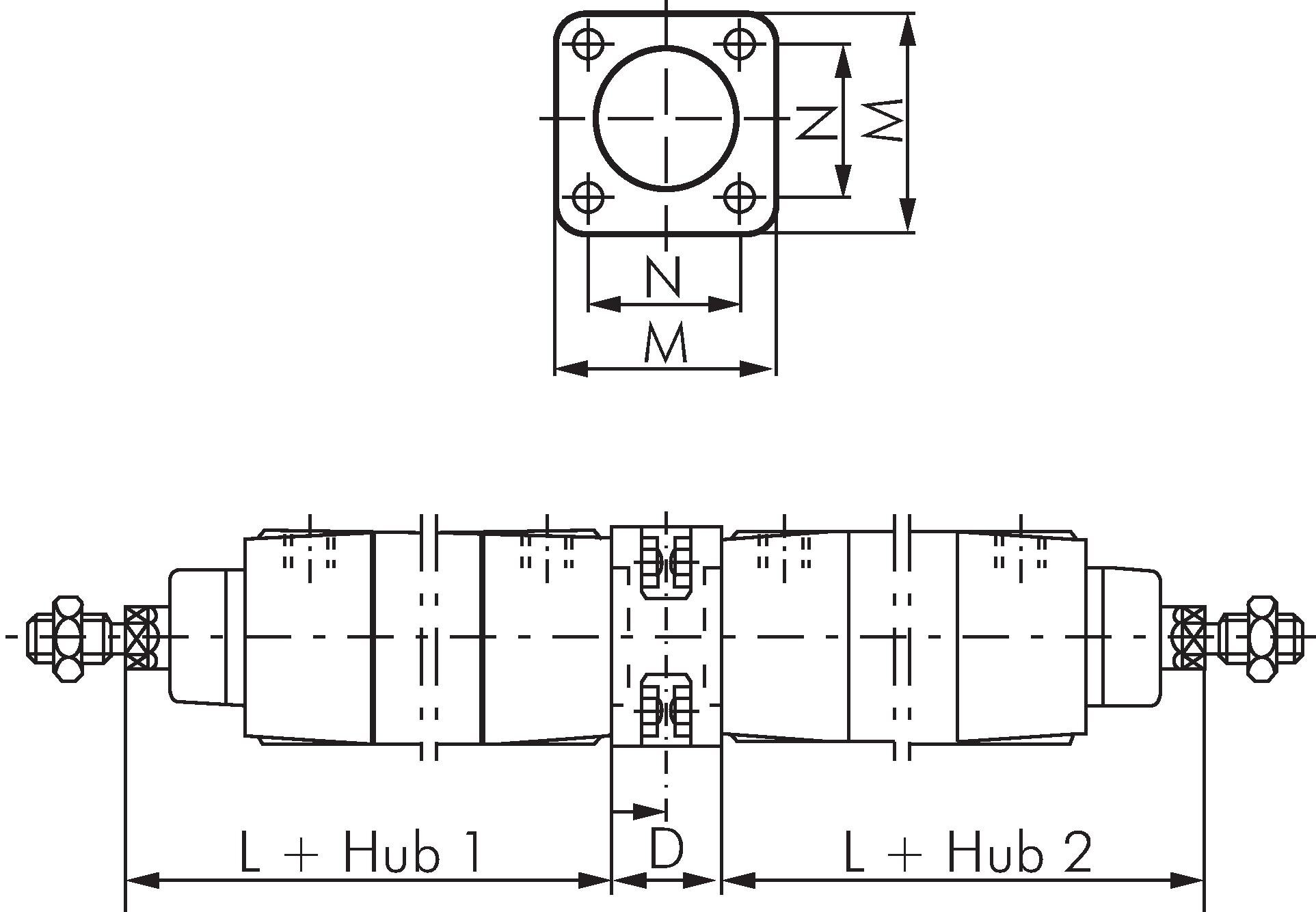

| for piston diameter [mm] | 80 |
| D [mm] | 38 |
| L [mm] | 174 |
| M [mm] | 93 |
| N [mm] | 72,0 |
Further information on TN80
| Weight | 800 g / pcs |
| GTIN | 4050571700645 |
| Customs duty number | 84129080 |
Documents
- Catalogue page Atlas 9 (Page 842) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
