Connection line Festo square plug H, Single wires (standard)
Item number:
KAB H 2,5
Item description
Description:

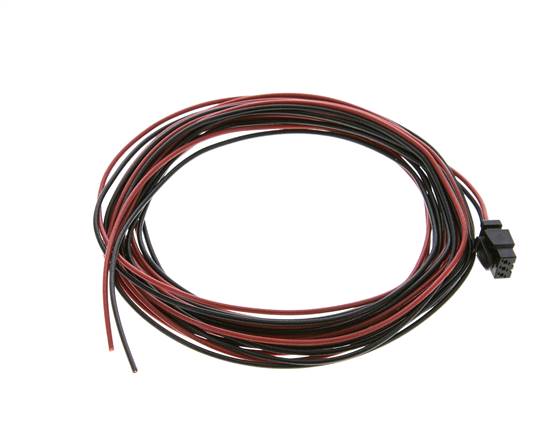

Pre-fabricated connection lines with rectangular plug H (6.7x4.2) on one side and 2 loose cable ends on the other side.
Temperature range:
-5 to +60 °C
Voltage:
max. 60 V DC, max. 3 A
Protection class:
IP 40
Cable:
2x 0.17 mm² (single wires or with PUR sheath)
Cable layout:
Pin 1 - red, Pin 3 - black, Pin 2 - not occupied
Suitable:
These cables are used preferentially for the connection of Festo valves. You have a selection between a 2-wire PUR cable (only for static applications) or 2 single wires (standard).
Pre-fabricated connection lines with rectangular plug H (6.7x4.2) on one side and 2 loose cable ends on the other side.
Temperature range:
-5 to +60 °C
Voltage:
max. 60 V DC, max. 3 A
Protection class:
IP 40
Cable:
2x 0.17 mm² (single wires or with PUR sheath)
Cable layout:
Pin 1 - red, Pin 3 - black, Pin 2 - not occupied
Suitable:
These cables are used preferentially for the connection of Festo valves. You have a selection between a 2-wire PUR cable (only for static applications) or 2 single wires (standard).
Properties
| Version | Single wires (standard) |
| Cable length [MTR] | 2,5 |
Further information on KABH2,5
| Weight | 18 g / pcs |
| Customs duty number | 85444290 |
| Manufacturer | Festo |
Documents
- Catalogue page Atlas 9 (Page 895) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
