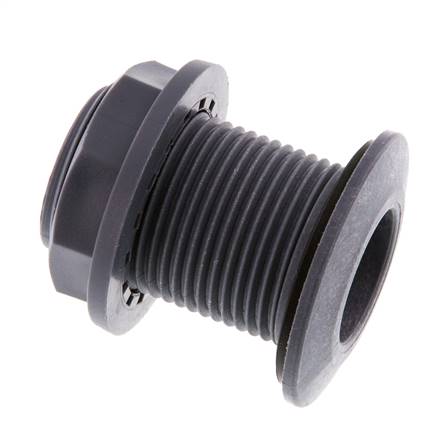

Item description
Materials:
Polypropylene*, seal: EPDM
Temperature range:
+5 to +80 °C
Polypropylene*, seal: EPDM
Temperature range:
+5 to +80 °C
Properties
| Thread external | G 1" |
| Bulkhead thread G | G 1" |
| Emax [mm] | 38,5 |
| L [mm] | 56 |
| DN [mm] | 24 |
| H [mm] | 5 |
| D [mm] | 50,0 |
Further information on DFB10PP
| Weight | 36 g / pcs |
| GTIN | 4050571649715 |
| Customs duty number | 39174000 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 228) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*base material FDA approved
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
