Coupling plug (NW5) 9 (3/8")mm hose, red, octagonal SW10

KSS 9 NW5-ROC

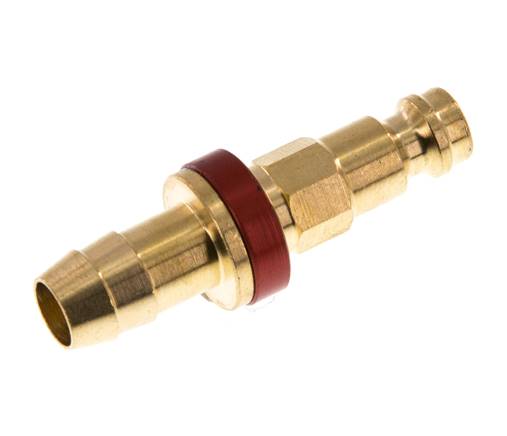

Exemplary representation: Coded coupling plug with grommet, NW 5 detailed view: Coded quick-release coupling (unmistakable), NW 5 detailed view: Plug dimensions
12,82€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass or nickel-plated brass, sliding sleeve: anodized aluminium, seals: NBR

Temperature range:
-20°C to +100°C

Operating pressure:
-0,95 to 35 bar

Flow*:
550 l/min

Compatible with**:
Rectus (21, 90)

Note:
Coded coupling plugs also fit in uncoded coupling sockets
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Brass
Version red, octagonal SW10
Hose diameter (inner) [mm] 9 (3/8")
KSS9NW5-ROC
{{ $t('shop.all.gewicht') }} 19 g / pcs
{{ $t('shop.all.gtin') }} 4050571454951
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.dokumente') }}
*6 bar input pressure, 0,5 bar pressure difference**Names and designations are partly trademarks of the manufacturers entered.
