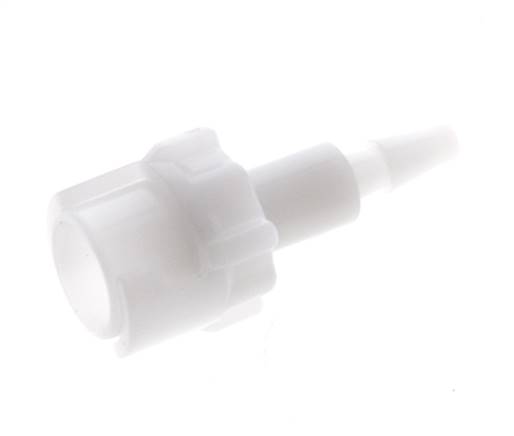

Coupling socket (SM) with hose screw connection, POM
Item number:
KDS 3 SM POM BA
Item description
Plug diameter:
6,1 mm
Flow air (water)*:
40 - 200 l/min (0,3 - 2,6 l/min)
Operating pressure:
-0,8 to 7 bar
Function:
Coupled by screwing the plug into the sleeve until you hear a “click”. It is possible to combine coupling plugs and coupling sockets with and without a shut-off valve and made of different materials as desired. The shut-off valve prevents the medium from spilling out when uncoupled. Ideally used for luer connectors in the medical technology field. When coupled, the hose screw connections inside the bayonet connectors can be rotated freely and thus prevent the hose from becoming bent or twisted.
Type POM:
Materials:
Body and valves: POM (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: NBR, bayonet connector: POM (raw material in accordance with FDA), bulkhead nut: nickel-plated brass
Temperature range:
-40°C to max. +80°C
Media:
Compressed air, water, alcohol, glycol, mineral oils, petrol, oxygen**, carbon dioxide, mild chemicals
Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol
Operating range:
For general applications. High resistance to mineral oils.
Polypropylene type:
Materials:
Body and valves: polypropylene (raw material in accordance with FDA), valve springs: stainless steel AISI 316, seals: EPDM, bayonet connector: POM (raw material in accordance with FDA), bulkhead nut: nickel-plated brass
Temperature range:
0°C to max. +80°C
Media:
Compressed air, water, many acids and alkaline solutions, alcohol, glycol, MEK, oxygen**, ozone, carbon dioxide, many chemicals
Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation
Operating range:
Suited for use with many chemicals. Not resistant to mineral oils.
Compatible with****:
CPC Colder SMC, LinkTech series 10
6,1 mm
Flow air (water)*:
40 - 200 l/min (0,3 - 2,6 l/min)
Operating pressure:
-0,8 to 7 bar
Function:
Coupled by screwing the plug into the sleeve until you hear a “click”. It is possible to combine coupling plugs and coupling sockets with and without a shut-off valve and made of different materials as desired. The shut-off valve prevents the medium from spilling out when uncoupled. Ideally used for luer connectors in the medical technology field. When coupled, the hose screw connections inside the bayonet connectors can be rotated freely and thus prevent the hose from becoming bent or twisted.
Type POM:
Materials:
Body and valves: POM (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: NBR, bayonet connector: POM (raw material in accordance with FDA), bulkhead nut: nickel-plated brass
Temperature range:
-40°C to max. +80°C
Media:
Compressed air, water, alcohol, glycol, mineral oils, petrol, oxygen**, carbon dioxide, mild chemicals
Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol
Operating range:
For general applications. High resistance to mineral oils.
Polypropylene type:
Materials:
Body and valves: polypropylene (raw material in accordance with FDA), valve springs: stainless steel AISI 316, seals: EPDM, bayonet connector: POM (raw material in accordance with FDA), bulkhead nut: nickel-plated brass
Temperature range:
0°C to max. +80°C
Media:
Compressed air, water, many acids and alkaline solutions, alcohol, glycol, MEK, oxygen**, ozone, carbon dioxide, many chemicals
Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation
Operating range:
Suited for use with many chemicals. Not resistant to mineral oils.
Compatible with****:
CPC Colder SMC, LinkTech series 10
Properties
| Material | POM |
| Version | With shut-off valve |
| Hose diameter (inner) [mm] | 3 |
| Temperature range [°C] | -40 to +80 |
Further information on KDS3SMPOMBA
| Weight | 1,2 g / pcs |
| GTIN | 4050571399566 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | LinkTech |
Documents
- Catalogue page Atlas 9 (Page 309) (PDF)
- Data sheet (Print view)
*When pressure drops by 1 bar (depending on configuration of coupling combination: with/without valve, connection dimension, ... is the flow within the indicated range), **be sure to clean before using with oxygen.
****Names and designations are in part registered trademarks of the respective manufacturers.
****max. wall thickness of the hose: 0.7 mm
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
