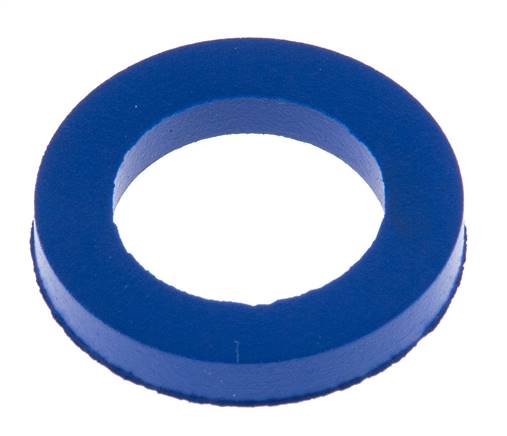

CSM (Hypalon) replacement seal f. Kamlock coupling DN15 (1/2")
Item number:
KLOR 12 HY
Item description
Materials:
NBR: (-10°C to +80°C) elastic standard material for neutral media such as air, oil and water. Good resistance to mechanical loads, EPDM: (-20°C to +130°C) elastic, resistance to alkaline solutions and acids of average concentration, water, hot water and steam. Not resistance to oils and greases, FKM: (-20°C to +180°C) elastic, elastomer with high temperature and weather resistance. Suitable for many acids, bases, fuels and oils (also synthetic). Not resistant to hot water and steam, CSM (Hypalon): (-40°C to +140°C) elastic and with good chemical resistance,
PTFE*: (-180°C to +200°C) very stiff and very good chemical resistance (install carefully). Resistant against almost all chemicals, even at high temperatures, NBR / PTFE: (-10°C to +80°C) elastic and with very good chemical resistance, FKM / PTFE: (-20°C to +180°C) elastic and with very good chemical resistance,
NBR: (-10°C to +80°C) elastic standard material for neutral media such as air, oil and water. Good resistance to mechanical loads, EPDM: (-20°C to +130°C) elastic, resistance to alkaline solutions and acids of average concentration, water, hot water and steam. Not resistance to oils and greases, FKM: (-20°C to +180°C) elastic, elastomer with high temperature and weather resistance. Suitable for many acids, bases, fuels and oils (also synthetic). Not resistant to hot water and steam, CSM (Hypalon): (-40°C to +140°C) elastic and with good chemical resistance,
PTFE*: (-180°C to +200°C) very stiff and very good chemical resistance (install carefully). Resistant against almost all chemicals, even at high temperatures, NBR / PTFE: (-10°C to +80°C) elastic and with very good chemical resistance, FKM / PTFE: (-20°C to +180°C) elastic and with very good chemical resistance,
Properties
| Version | solid material |
| Material | CSM (Hypalon) |
| DN [mm] | 15 (1/2") |
| Outer diameter (approx.) [mm] | 26 |
| Thickness [mm] | 4,0 |
| Temperature range [°C] | -40 to +140 |
Further information on KLOR12HY
| Weight | 2,2 g / pcs |
| GTIN | 4050571837983 |
| Customs duty number | 40169300 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 356) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Not recommended as very stiff, small nominal widths are difficult to assemble!
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
