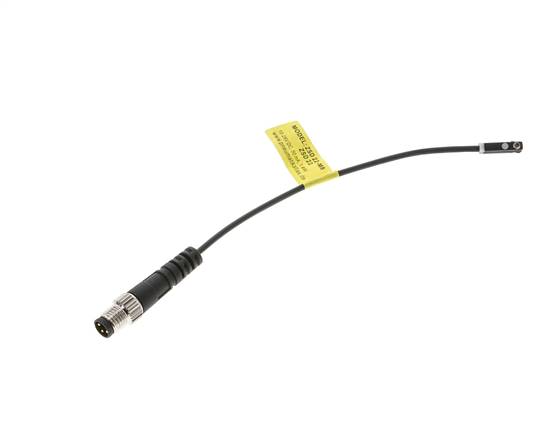

Cylinder switches, 2-wire solid-state sensor, red LED

ZSD 22-M8

Exemplary representation: Solid state sensor & fully electronic sensor Schematic symbol: M 8 plug (3-pin) Schematic symbol: 2-wire solid state sensor
38,54€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: plastic, screw: metal

Connecting line:
PUR cable (Reed-switch: PVC-cable)

Protection class:
IP 67

Temperature range:
-10°C to +70°C

Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. It is mounted by pushing it in the groove of the cylinder and locking it using the threaded rod.

Suitable:
Universal insert for cylinders with continuous C-slot, continuous and non-continuous T-slot (5 mm) and with optional clamping band also for round cylinders Ø 8 - 63 mm.

Advantages:
•no mounting material required for cylinder with C-groove & T-groove (5mm),
•a switch that fits many products of most Asian brands (e.g. SMC),
•with included adapter fits many products of most European brands (e.g. Festo),
•can be used with optional tension tape for round cylinders
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version 2-wire solid-state sensor, red LED
Operating voltage 10 - 28 V (DC)
Switching NO contact
Max. switching current [mA] 50
Max. capacity 1,4 W
Connecting line 0.15 m, 2x 0.1 mm² with M 8 connector (3 pin)
ZSD22-M8
{{ $t('shop.all.gewicht') }} 15 g / pcs
{{ $t('shop.all.gtin') }} 4050571890940
{{ $t('shop.display.artikel.zollwarennummer') }} 85365019
