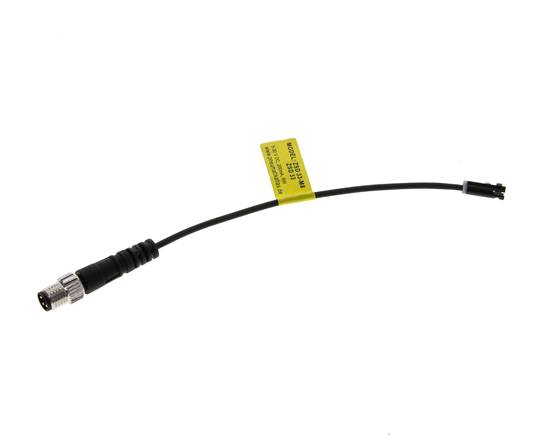

Cylinder switches, Fully electronic sensor (reverse polarity protection), green LED

ZSD 33-M8

Exemplary representation: Solid state sensor & fully electronic sensor Schematic symbol: M 8 plug (3-pin) Schematic symbol: fully electronic sensor
54,30€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: plastic, screw: metal

Connecting line:
PUR cable (Reed-switch: PVC-cable)

Protection class:
IP 67

Temperature range:
-10°C to +70°C

Note:
The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. It is mounted by pushing it in the groove of the cylinder and locking it using the threaded rod.

Suitable:
Universal insert for cylinders with continuous C-slot, continuous and non-continuous T-slot (5 mm) and with optional clamping band also for round cylinders Ø 8 - 63 mm.

Advantages:
•no mounting material required for cylinder with C-groove & T-groove (5mm),
•a switch that fits many products of most Asian brands (e.g. SMC),
•with included adapter fits many products of most European brands (e.g. Festo),
•can be used with optional tension tape for round cylinders
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Fully electronic sensor (reverse polarity protection), green LED
Operating voltage 5 - 30 V (DC)
Switching NO contact (PNP)
Max. switching current [mA] 200
Max. capacity 6 W
Connecting line 0.15 m, 3x 0.1 mm² with M 8 connector (3 pin)
ZSD33-M8
{{ $t('shop.all.gewicht') }} 15 g / pcs
{{ $t('shop.all.gtin') }} 4050571890957
{{ $t('shop.display.artikel.zollwarennummer') }} 85365019
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 886) atlas9_seiten/886.pdf
    Documentation: Tips for selecting the right cylinder switch doku/leitfadenzurauswahldesrichtigenzylinderschalters.pdf
