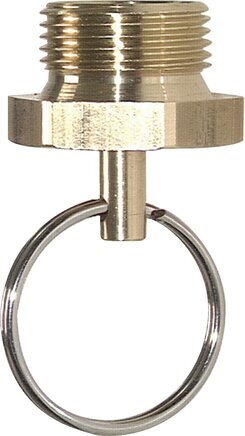

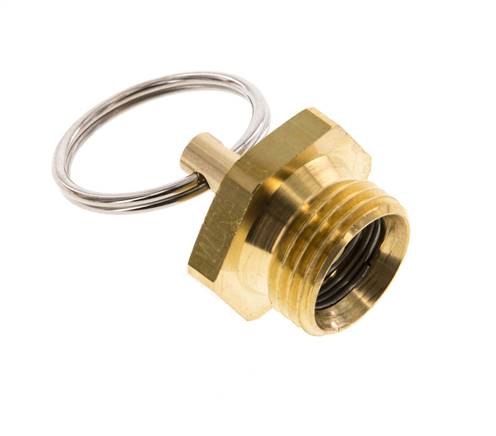

Item description
Materials:
Body and valve: Brass, ring: Nickel-plated brass, cone pressure spring: stainless steel, seal: NBR
Temperature range:
-40 to +80 °C
Actuation:
by pressing the ring gently sideways
Body and valve: Brass, ring: Nickel-plated brass, cone pressure spring: stainless steel, seal: NBR
Temperature range:
-40 to +80 °C
Actuation:
by pressing the ring gently sideways
Properties
| Thread | G 1/2" |
| Spanner width [mm] | 27 |
Further information on EWV12MS
| Weight | 46 g / pcs |
| GTIN | 4050571291174 |
| Customs duty number | 73079910 |
Documents
- Catalogue page Atlas 9 (Page 513) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
