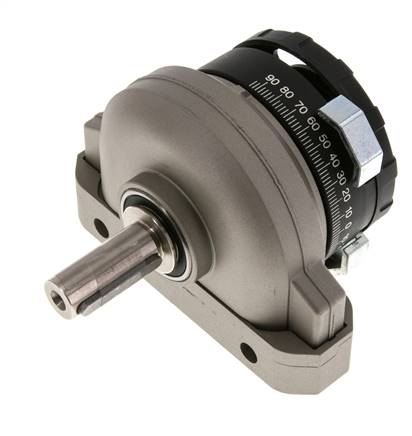

DSR-32-180-P (11912) semi-rotary drive

Item number:

OT-FESTO006495

All items of this group
€619.45 incl. VAT
pcs
Properties
size 32
Damp­en­ing angle [deg] 1,2
Set­tings range swivel angle [deg] 0 to 180
Swivel angle [deg] 0 to 180
Damp­en­ing P: Elas­tic si­lencer rings / plates double-​sided
in­stal­la­tion po­si­tion ar­bi­trary
Prin­ci­ple of op­er­a­tion dou­ble act­ing
Con­struc­tion set up Ro­tary vane
Po­si­tion de­tec­tion with­out
Op­er­at­ing pres­sure [bar] 1.5 to 8
Max. swivel fre­quency at 6 bar [Hz] 3
Op­er­at­ing medium Com­pressed air to ISO 8573-​1:2010 [7:-:-]
am­bi­ent tem­per­a­ture [°C] -10 to 60
The­o­ret­i­cal torque at 6 bar [Nm] 10,0
Fas­ten­ing type With through­way bores
Pneu­matic con­nec­tion G1/8
Drive shaft ma­te­r­ial Nickel-​plated steel
Seals ma­te­r­ial NBR
Further information on OT-FESTO006495
Weight 1,4 kg / pcs
GTIN 4052568002473
Customs duty number 84123900
Manufacturer Festo
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
