Properties

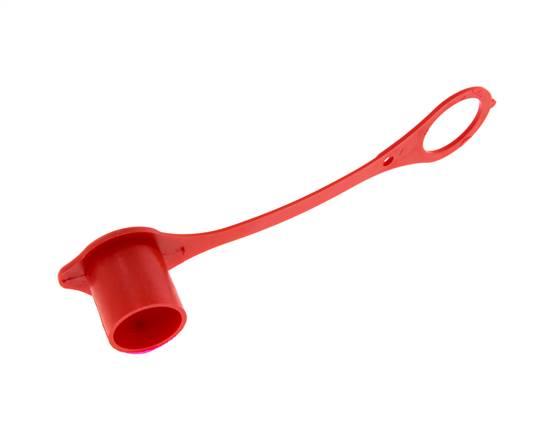

| Version | for plugs |
| for size | 3 |
| A [mm] | 20,5 |
| B [mm] | 38 |
| DN (ISO) [mm] | 12,5 |
Further information on 491032
| Weight | 9 g / pcs |
| GTIN | 4050571198633 |
| Customs duty number | 39235090 |
Documents
- Catalogue page Atlas 9 (Page 327) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*not standardized following ISO 7241-1 A
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
