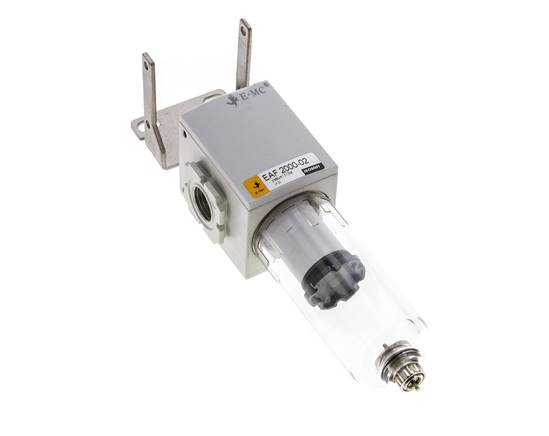

Eco-Line filter, G 1/4", drain manual
{{ $t('shop.all.artikelnummer') }}:
EAF 2000-02
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Filtering using the centrifugal principal and sintered filter
Materials:
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5°C to +60°C
Input pressure:
1,5 to 10 bar
Condensate draining:
semi-automatic**
Pore width in the filter:
5 µm
Media:
Compressed air, neutral gases
Scope of delivery:
Filter including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
Filtering using the centrifugal principal and sintered filter
Materials:
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5°C to +60°C
Input pressure:
1,5 to 10 bar
Condensate draining:
semi-automatic**
Pore width in the filter:
5 µm
Media:
Compressed air, neutral gases
Scope of delivery:
Filter including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | Eco-Line 2A |
| Thread | G 1/4" |
| Container design | Plastic container |
| Condensate drain | Manually |
| flow [l/min] | 1400 |
| Max. condensate amount [cm³] | 11 |
| L [mm] | 43 |
| H [mm] | 127 |
| H1 [mm] | 25 |
| Coupling kit | KP EA2000 |
{{ $t('shop.display.artikel.info') }} EAF2000-02
| {{ $t('shop.all.gewicht') }} | 190 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571924171 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811005 |
| {{ $t('shop.all.hersteller') }} | EMC |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 560) atlas9_seiten/560.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/73566/eaf2000-02584579.stp
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/73566/eaf2000-02584579.stp
**as soon as the input pressure falls below the minimum. input pressure, the drain valve opens automatically.
