Item description
Version:

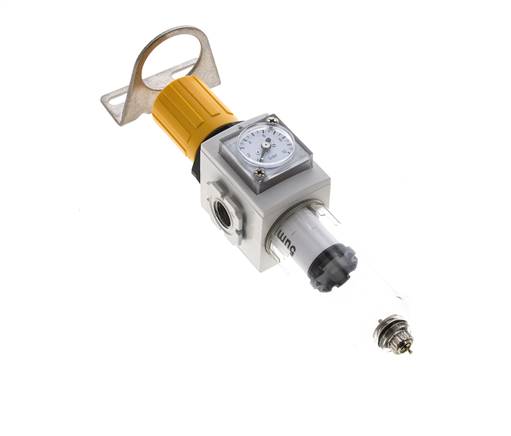

Reversible pressure regulator (with relieving system) and additional filtering using the centrifugal principle and a sintered filter
Materials:
Bodies: aluminium, spring hood: polyamide, diaphragm and seals: NBR, container: polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
1,5 to 10 bar
Pressure regulation range:
0,5 to 9 bar
Pressure gauge display:
0 to 10 bar
Condensate draining:
semi-automatic**
Pore width in the filter:
5 µm
Media:
Compressed air, neutral gases
Scope of delivery:
Filter regulator including pressure gauge and mounting bracket
Advantages:
•Automatic venting in case of overpressure on the secondary side,
•Simple assembly of individual components of a series by means of coupling packages,
•Handwheel can be locked by pushing down,
•Fixing bracket included in the scope of delivery,
•Space-saving compact pressure gauge already mounted,
•Double-walled transparent vessel (not series 2A)
Reversible pressure regulator (with relieving system) and additional filtering using the centrifugal principle and a sintered filter
Materials:
Bodies: aluminium, spring hood: polyamide, diaphragm and seals: NBR, container: polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
1,5 to 10 bar
Pressure regulation range:
0,5 to 9 bar
Pressure gauge display:
0 to 10 bar
Condensate draining:
semi-automatic**
Pore width in the filter:
5 µm
Media:
Compressed air, neutral gases
Scope of delivery:
Filter regulator including pressure gauge and mounting bracket
Advantages:
•Automatic venting in case of overpressure on the secondary side,
•Simple assembly of individual components of a series by means of coupling packages,
•Handwheel can be locked by pushing down,
•Fixing bracket included in the scope of delivery,
•Space-saving compact pressure gauge already mounted,
•Double-walled transparent vessel (not series 2A)
Properties
| Model series | Eco-Line 2A |
| Thread | G 1/4" |
| Container design | Plastic container |
| Condensate drain | Manually |
| flow [l/min] | 900 |
| Max. condensate amount [cm³] | 11 |
| L [mm] | 43 |
| H [mm] | 171 |
| H1 [mm] | 69 |
| Switch panel thread | M 31x1,5 |
| Coupling kit | KP EA2000 |
Further information on EAW2000-02
| Weight | 270 g / pcs |
| GTIN | 4050571924249 |
| Customs duty number | 84811005 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
Documents
- Catalogue page Atlas 9 (Page 560) (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
**as soon as the input pressure falls below the minimum. input pressure, the drain valve opens automatically.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
