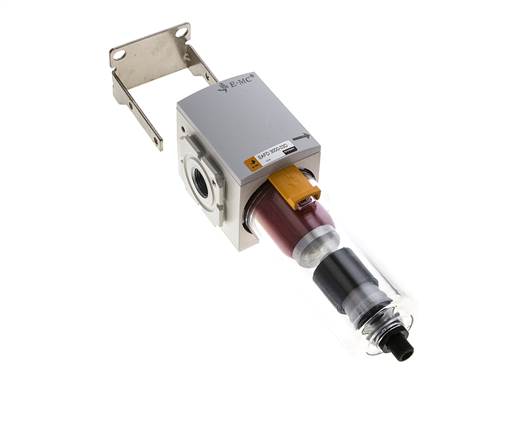

Eco-Line sub-microfilter, G 3/8", drain automatic
Item number:
EAFD 3000-03D
Item description
Application:
Sub-microfilters are used where high demands are placed on the purity of the compressed air. Micro-particles (> 0.01 µm) and oil mist are separated here. We recommend connecting an upstream microfilter to increase the service life.
Materials:
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
1,5 to 10 bar
Condensate draining:
semi-automatic**
Dust removal:
> 0,01 µm (99,999 %)
Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)
Media:
Compressed air, neutral gases
Scope of delivery:
Sub-microfilter including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
Sub-microfilters are used where high demands are placed on the purity of the compressed air. Micro-particles (> 0.01 µm) and oil mist are separated here. We recommend connecting an upstream microfilter to increase the service life.
Materials:
Body: Aluminium, gaskets: NBR, container: Polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
1,5 to 10 bar
Condensate draining:
semi-automatic**
Dust removal:
> 0,01 µm (99,999 %)
Residual oil content:
0.01 mg/m³ (Class 1 according to DIN ISO 8573-1)
Media:
Compressed air, neutral gases
Scope of delivery:
Sub-microfilter including mounting bracket
Advantages:
•Simple assembly of individual components of a series by means of coupling packages,
•Fixing bracket included in the scope of delivery,
•Double-walled transparent vessel (not series 2A)
Properties
| Model series | Eco-Line 3A |
| Thread | G 3/8" |
| Container design | Plastic container, double-walled |
| Condensate drain | automatic |
| Flow* [l/min] | 480 |
| L [mm] | 57 |
| H [mm] | 177 |
| H1 [mm] | 33 |
| Coupling kit | KP EA3000 |
| Replacement filter | EAFD 3000 FIL |
Further information on EAFD3000-03D
| Weight | 460 g / pcs |
| GTIN | 4050571940621 |
| Customs duty number | 84811005 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
Documents
- Catalogue page Atlas 9 (Page 560a) (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*at 6 bar inlet pressure and 0.1 bar pressure drop
**as soon as the input pressure falls below the minimum. input pressure, the drain valve opens automatically.
