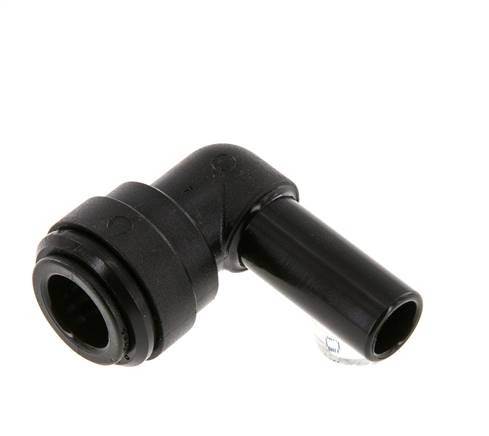

Elbow push-in fitting 10mm push-in nipple, IQS-FDA
Item number:
IQSL 100H FDA
Item description
Materials:
Body and sleeve: POM (FDA approved), holding claw: Stainless steel, seals: NBR (FDA approved)
Temperature range:
-20 to +70 °C
Operating pressure:
-0,95 to 16 bar (Ø 12 mm: max. 10 bar)
Media:
oiled and unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids, mild chemicals
Approvals:
FDA, NSF, WRC, ACS and KTW
Body and sleeve: POM (FDA approved), holding claw: Stainless steel, seals: NBR (FDA approved)
Temperature range:
-20 to +70 °C
Operating pressure:
-0,95 to 16 bar (Ø 12 mm: max. 10 bar)
Media:
oiled and unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids, mild chemicals
Approvals:
FDA, NSF, WRC, ACS and KTW
Properties
| D [mm] | 10 |
| D1 [mm] | 10 |
| Operating pressure [bar] | 0,95 - 16 |
Further information on IQSL100HFDA
| Weight | 6,7 g / pcs |
| GTIN | 4050571377922 |
| Customs duty number | 39174000 |
Documents
- Catalogue page Atlas 9 (Page 89) (PDF)
- Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
