Item description
Version:

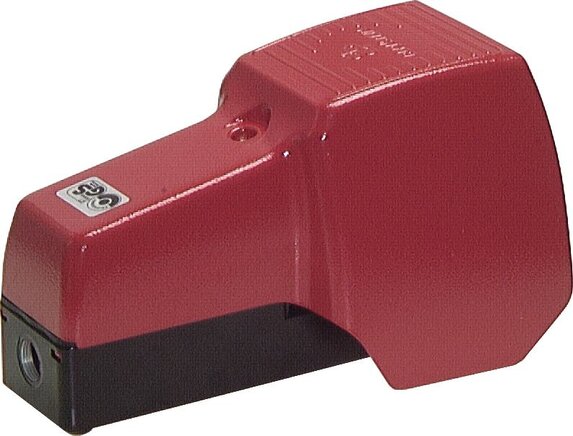

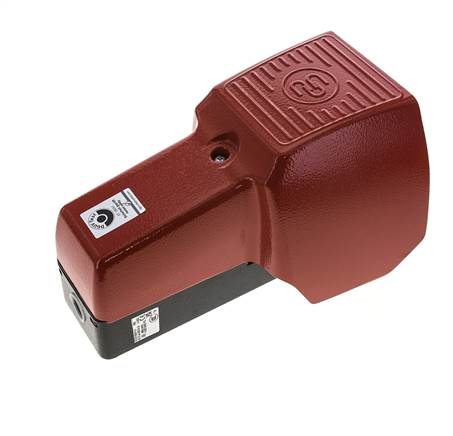

electrical foot switch, industrial design
Materials:
Pedal: Plastic, body, and protective cover: Die-cast aluminium
Temperature range:
-30 to +80 °C
Electrical connection:
Screw terminals, cable gland: M 20x1,5 (FT)
Protection class:
IP 65
Switch type:
1 Opener (NC) and 1 Closer (NO)
Switching capacity:
240 V AC, max. 3 A
Conventional thermal current:
10 A
electrical foot switch, industrial design
Materials:
Pedal: Plastic, body, and protective cover: Die-cast aluminium
Temperature range:
-30 to +80 °C
Electrical connection:
Screw terminals, cable gland: M 20x1,5 (FT)
Protection class:
IP 65
Switch type:
1 Opener (NC) and 1 Closer (NO)
Switching capacity:
240 V AC, max. 3 A
Conventional thermal current:
10 A
Further information on FSE
| Weight | 1,4 kg / pcs |
| GTIN | 4050571309404 |
| Customs duty number | 85365080 |
Documents
- Catalogue page Atlas 9 (Page 749) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
