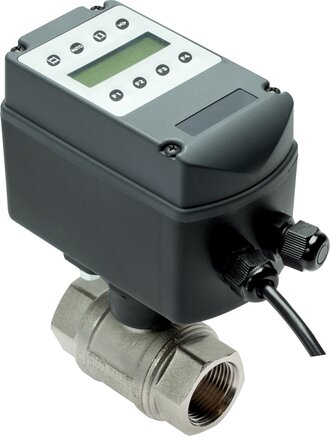

Electrically driven ball valve with timer, G 1"
{{ $t('shop.all.artikelnummer') }}:
KH TIME 10
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body ball valve: nickel-plated brass, ball: stainless steel, ball seals: PTFE, drive housing: plastic
Temperature range:
+1°C to +50°C (medium: +1°C to +100°C
Media:
Compressed air and other neutral media
Power supply:
230 V (AC) (clock and program are battery buffered)
Protection class:
IP 54
Programming:
accurate to the minute, up to 16 switching cycles per day, each weekday individually programmable
Operation:
using timers (automatic), manual operation (timer switch) or manual operation (e.g. power failure). With ceiling installation, we recommend the use of remote controls.
Advantages:
•energy savings by automatically closing the compressed air line after work and automatically opening it before work starts
Warning:
In case of high media temperatures, the actuator must be cooled if necessary!
Body ball valve: nickel-plated brass, ball: stainless steel, ball seals: PTFE, drive housing: plastic
Temperature range:
+1°C to +50°C (medium: +1°C to +100°C
Media:
Compressed air and other neutral media
Power supply:
230 V (AC) (clock and program are battery buffered)
Protection class:
IP 54
Programming:
accurate to the minute, up to 16 switching cycles per day, each weekday individually programmable
Operation:
using timers (automatic), manual operation (timer switch) or manual operation (e.g. power failure). With ceiling installation, we recommend the use of remote controls.
Advantages:
•energy savings by automatically closing the compressed air line after work and automatically opening it before work starts
Warning:
In case of high media temperatures, the actuator must be cooled if necessary!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | ball valve |
| Thread | G 1" |
| DN [mm] | 25 |
| Installation length ball valve [mm] | 88 |
| PN [bar] | 0 - 16 |
| Regulating time [s] | 30 |
| Remote control* | KH TIME REMOTE |
{{ $t('shop.display.artikel.info') }} KHTIME10
| {{ $t('shop.all.gewicht') }} | 1,7 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571427733 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84149000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 539) atlas9_seiten/539.pdf
Documentation: PED, EMC, NSR, RoHS statement konf_erkl/stellungnahme_richtlininien_dgrl_emv_nsr_rohs_khtime_de_en_la.pdf
3D CAD file (volume model) protected/cad/3d/70378/khtime10142499.stp
Function and structure of an electrical ball valve
Documentation: PED, EMC, NSR, RoHS statement konf_erkl/stellungnahme_richtlininien_dgrl_emv_nsr_rohs_khtime_de_en_la.pdf
3D CAD file (volume model) protected/cad/3d/70378/khtime10142499.stp
Function and structure of an electrical ball valve
*incl. 5 m cable
