Item description
Materials:
Body: 1.4301, display: plastic, wetted parts: 1.4404, NBR (0 - 1000 bar: 1.4404, FKM)
Display:
4-digit LED display, height of digits 9 mm
Temperature range:
-20 to +85 °C, Environment: -20 to +80 °C
Protection class:
IP 67
Power supply:
15 to 35 V (DC)
Power input:
45 mA (with additional analogue output 4-20 mA: 75 mA)
Electrical connection:
M 12 plug, A-coded, 4-pole (with additional analogue output 4-20 mA: M 12 plug (A-coded, 5-pole)
Control output (PNP/NPN):
2 control outputs (contacts, break contacts, windows and hysteresis can be freely adjusted for each control output), max. 250 mA (DC)
Switching accuracy:
± 0,5 % of span
Accuracy of additional analogue output 4 - 20 mA:
± 0,5 % of span
Connection:
G 1/4" (male thread with Elastomer seal)
Service life:
100 million relay switches
Media:
Oils, water, compressed air, non-aggressive gases and fluids, vacuum
Optional:
IO-Link communication standard for quicker installation and parametrisation -IO
Advantages:
•no moving parts, hence no-wear measurement,
•easily readable, robust LED display,
•intuitive and fast operation,
•easily adjustable to match different mounting situations, for example, by means of a display that can be rotated through 300° or a digit display rotatable through 180°,
•thread connection provided with elastomer seal,
•winner of the IF Product Design Award,
•password-protected menu navigation,
•vacuum-resistant
Note:

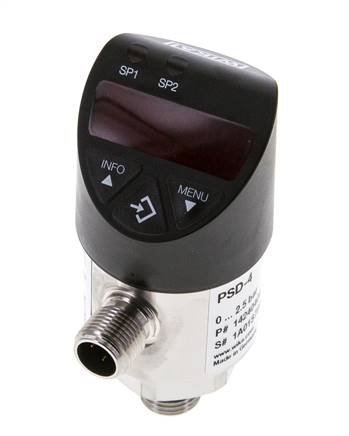

WIKA type PSD-4
Body: 1.4301, display: plastic, wetted parts: 1.4404, NBR (0 - 1000 bar: 1.4404, FKM)
Display:
4-digit LED display, height of digits 9 mm
Temperature range:
-20 to +85 °C, Environment: -20 to +80 °C
Protection class:
IP 67
Power supply:
15 to 35 V (DC)
Power input:
45 mA (with additional analogue output 4-20 mA: 75 mA)
Electrical connection:
M 12 plug, A-coded, 4-pole (with additional analogue output 4-20 mA: M 12 plug (A-coded, 5-pole)
Control output (PNP/NPN):
2 control outputs (contacts, break contacts, windows and hysteresis can be freely adjusted for each control output), max. 250 mA (DC)
Switching accuracy:
± 0,5 % of span
Accuracy of additional analogue output 4 - 20 mA:
± 0,5 % of span
Connection:
G 1/4" (male thread with Elastomer seal)
Service life:
100 million relay switches
Media:
Oils, water, compressed air, non-aggressive gases and fluids, vacuum
Optional:
IO-Link communication standard for quicker installation and parametrisation -IO
Advantages:
•no moving parts, hence no-wear measurement,
•easily readable, robust LED display,
•intuitive and fast operation,
•easily adjustable to match different mounting situations, for example, by means of a display that can be rotated through 300° or a digit display rotatable through 180°,
•thread connection provided with elastomer seal,
•winner of the IF Product Design Award,
•password-protected menu navigation,
•vacuum-resistant
Note:
WIKA type PSD-4
Properties
| Version | IO-Link |
| Setting range [bar] | 0 - 4 |
| Safe at overpressure up to [bar] | 8,0 |
Further information on DRSEW4-IO
| Weight | 280 g / pcs |
| GTIN | 4050571837365 |
| Customs duty number | 90262020 |
| RoHS compliant | Yes |
| Manufacturer | WIKA (WEEE DE92770372) |
Documents
- Catalogue page Atlas 9 (Page 691) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
