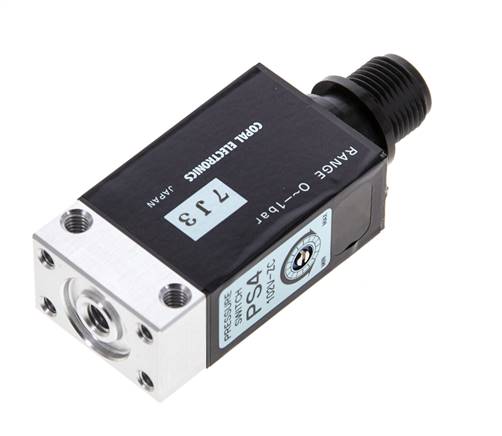

electronic pressure switch -1 to 0 bar, M 12 plug (A-coded, 4-pole)
Item number:
VAKUS ECST
Item description
Materials:
Housing: Polycarbonate, threaded connection: Aluminium
Temperature range:
-20 to +70 °C
Protection class:
IP 40
Power supply:
10,8 to 26,4 V (DC)
Power input:
30 mA
Control output (PNP):
1 switching output (normally open, switching point and hysteresis adjustable via potentiometer), max. 80 mA (DC)
Switching accuracy:
± 3 % of span
Switch-back difference (hysteresis)
1 to 15 % of the value that has been set (can be adjusted via potentiometer)
analogue output:
1 - 5 V
Accuracy of the analogue output:
± 0,4 V
Connection:
M 5 (FT) or flange Ø 8 x 13 mm, 4x M 3 female thread (19 x 10 mm)
Media:
Compressed air, non-aggressive gases, vacuum
Advantages:
•no moving parts, hence no-wear measurement,
•switching point and hysteresis adjustable with a potentiometer
•intuitive and fast operation (VDMA standard),
•connection via flange or M 5 female thread
Housing: Polycarbonate, threaded connection: Aluminium
Temperature range:
-20 to +70 °C
Protection class:
IP 40
Power supply:
10,8 to 26,4 V (DC)
Power input:
30 mA
Control output (PNP):
1 switching output (normally open, switching point and hysteresis adjustable via potentiometer), max. 80 mA (DC)
Switching accuracy:
± 3 % of span
Switch-back difference (hysteresis)
1 to 15 % of the value that has been set (can be adjusted via potentiometer)
analogue output:
1 - 5 V
Accuracy of the analogue output:
± 0,4 V
Connection:
M 5 (FT) or flange Ø 8 x 13 mm, 4x M 3 female thread (19 x 10 mm)
Media:
Compressed air, non-aggressive gases, vacuum
Advantages:
•no moving parts, hence no-wear measurement,
•switching point and hysteresis adjustable with a potentiometer
•intuitive and fast operation (VDMA standard),
•connection via flange or M 5 female thread
Properties
| Electrical connection | M 12 plug (A-coded, 4-pole) |
| Setting range [bar] | -1 to 0 |
| Safe at overpressure up to [bar] | 3 |
Further information on VAKUSECST
| Weight | 45 g / pcs |
| GTIN | 4050571716936 |
| Customs duty number | 84812090 |
Documents
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
