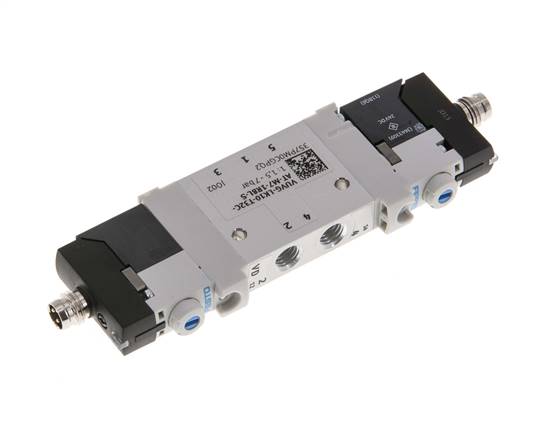

Festo-Magnetventil 8042550 VUVG-LK10-T32C-AT-M7-1R8L-S
Item number:
VUVG-LK10-T32C-M7-R8
Item description
Materials:
Body: Aluminium / plastic, seals: NBR
Temperature range:
-5 to +50 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,7 W
Protection class:
IP 65 (with rectangular plug H: IP 40)
Switching time:
< 17 ms
Note:
Please order the connection cable fitting the respective connection separately.
Body: Aluminium / plastic, seals: NBR
Temperature range:
-5 to +50 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,7 W
Protection class:
IP 65 (with rectangular plug H: IP 40)
Switching time:
< 17 ms
Note:
Please order the connection cable fitting the respective connection separately.
Properties
| Version | M 8-plug connector (3-pole) with LED and protective circuit |
| function | 2x 3/2-way (NC/NC) |
| Thread (3x) | M 7 |
| Thread exhaust air (2x) | M 7 |
| Operating pressure [bar] | 1,5 - 7 |
| flow [l/min] | 280 |
Further information on VUVG-LK10-T32C-M7-R8
| Weight | 55 g / pcs |
| Customs duty number | 84812090 |
| Manufacturer | Festo |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 766) (PDF)
- Data sheet (Print view)
*Pneumatic spring
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
