Festo-Magnetventil 8043217 VUVS-LK25-M32C-AD-G14-1B2-S
Item number:
VUVS-LK25-M32C-14-B
Item description
Materials:
Body: aluminium, seals: NBR
Temperature range:
-5 to +50 °C
Operating pressure:
1,5 to 8 bar
Media:
oiled and unoiled filtered compressed air
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Switching time:
< 22 ms
Power consumption:
3,3 W
Protection class:
IP 65 (plug size 1)
Note:
Valve plug is not included in the scope of delivery. Please order separately!
Body: aluminium, seals: NBR
Temperature range:
-5 to +50 °C
Operating pressure:
1,5 to 8 bar
Media:
oiled and unoiled filtered compressed air
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Switching time:
< 22 ms
Power consumption:
3,3 W
Protection class:
IP 65 (plug size 1)
Note:
Valve plug is not included in the scope of delivery. Please order separately!
Properties

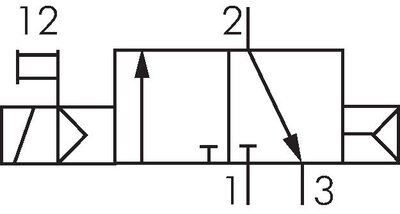

| function | 3/2-way (NC) |
| Thread | 2x G 1/4" |
| Thread exhaust air | G 1/4" |
| flow [l/min] | 1000 |
| compatible standard connector | ST 01 |
Further information on VUVS-LK25-M32C-14-B
| Weight | 195 g / pcs |
| Customs duty number | 84812090 |
| Manufacturer | Festo |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 770) (PDF)
- Data sheet (Print view)
*Pneumatic spring
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
