Item description
Suitable:

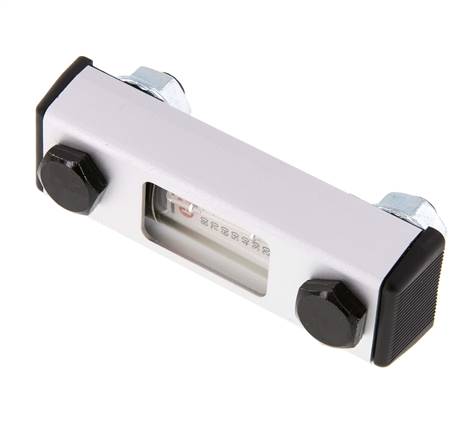

Level indicators are used to check the oil level in hydraulic tanks and are available with or without a thermometer.

Materials:
Connection and standpipe: Plastic, housing frame: Aluminum, screw and nut: Steel, seal: NBR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 1 bar

Media:
Hydraulic oils on the basis of mineral oil
Properties
Ver­sion with ther­mome­ter
A [mm] 76
B [mm] 108
max. con­tainer wall thick­ness [mm] 8
Tem­per­a­ture mea­sur­ing range [°C] +20 bis +80
Further information on FSAT76
Weight 160 g / pcs
GTIN 4050571309381
Customs duty number 90261089
Manufacturer Hydac
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
