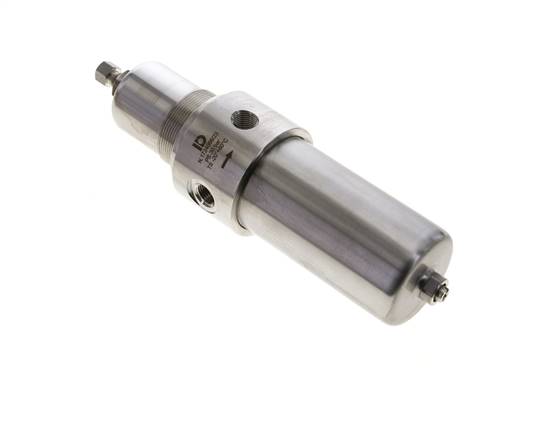

Filter regulator, 1.4404, G 1/4", 0,5 to 8bar (Standard)
Item number:
FR 14-8 ES
Item description
Version:
Self-relieving (with secondary vent)
Materials:
Seals: FKM, membrane: NBR (PTFE coated), filter: 1.4401
Temperature range:
-20 to +80 °C
Input pressure:
max. 30 bar
Pore width in the filter:
50 µm
Media:
Oiled and unoiled compressed air, non-toxic gasses
Pressure gauge connection:
G 1/4"
Switch panel thread:
M 45x1,5
Optional:
automatic drain (inlet pressure 2 - 16 bar) -AM
Self-relieving (with secondary vent)
Materials:
Seals: FKM, membrane: NBR (PTFE coated), filter: 1.4401
Temperature range:
-20 to +80 °C
Input pressure:
max. 30 bar
Pore width in the filter:
50 µm
Media:
Oiled and unoiled compressed air, non-toxic gasses
Pressure gauge connection:
G 1/4"
Switch panel thread:
M 45x1,5
Optional:
automatic drain (inlet pressure 2 - 16 bar) -AM
Properties
| Version | Standard |
| Material | 1.4404 |
| Thread | G 1/4" |
| Pressure regulation range [bar] | 0,5 - 8 |
| Flow* [l/min] | 800 |
| Condensate draining | Manually |
| L [mm] | 64 |
| H [mm] | 249 |
| C [mm] | 121 |
| Mounting brackets | WH 14 ES |
| recommended pressure gauge | MW 1063 ES |
Further information on FR14-8ES
| Weight | 1,6 kg / pcs |
| GTIN | 4050571306113 |
| Customs duty number | 84811005 |
Documents
- Catalogue page Atlas 9 (Page 621) (PDF)
- Documentation (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- Declaration of Conformity (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*At 8 bar input pressure, 6 bar outlet pressure and 1 bar pressure drop
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
