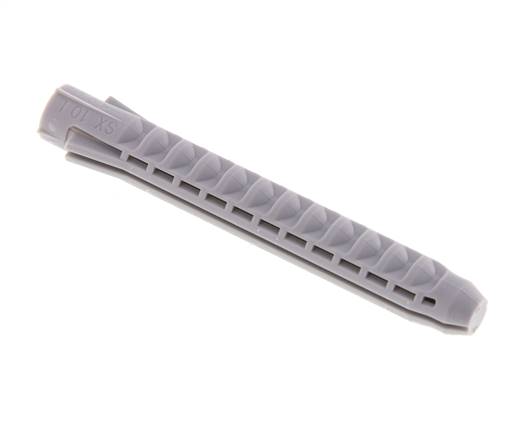

FISCHER dowel, SX Plus 10x80 without a border, 25 pack
Item number:
DUBEL SX10X80 OR
Item description
Application:
Concrete and solid masonry units, vertically perforated bricks, aerated concrete, lightweight concrete hollow blocks. The dowel must be placed flush in the load-bearing substrate.
Screws that can be used:
Wood or chipboard screws
Advantages:
•special fixing wings to keep the screw fixed in place, making overhead applications easier,
•the short dowel length enables quick installation thanks to the shallow drill hole depth,
•in a long version with high load-bearing capacity in perforated building materials, aerated concrete or when bridging plaster,
•the pronounced dowel edge prevents the dowel from slipping deeper into the drill hole
Concrete and solid masonry units, vertically perforated bricks, aerated concrete, lightweight concrete hollow blocks. The dowel must be placed flush in the load-bearing substrate.
Screws that can be used:
Wood or chipboard screws
Advantages:
•special fixing wings to keep the screw fixed in place, making overhead applications easier,
•the short dowel length enables quick installation thanks to the shallow drill hole depth,
•in a long version with high load-bearing capacity in perforated building materials, aerated concrete or when bridging plaster,
•the pronounced dowel edge prevents the dowel from slipping deeper into the drill hole
Properties
| Version | without a border |
| Bore diameter [mm] | 10 |
| Min. hole depth [mm] | 95 |
| Dowel length [mm] | 80 |
| min. board thickness [mm] | 80 |
| Screw diameter [mm] | 6 - 8 |
| Amount | 25 pack |
Further information on DUBELSX10X80OR
| Weight | 145 g / pcs |
| GTIN | 4006209248294 |
| Customs duty number | 39269097 |
| Manufacturer | Fischer |
Documents
- Catalogue page Atlas 9 (Page 1144) (PDF)
- Data sheet (Print view)
