Item description
Materials:
Zinc plated steel
Scope of delivery:

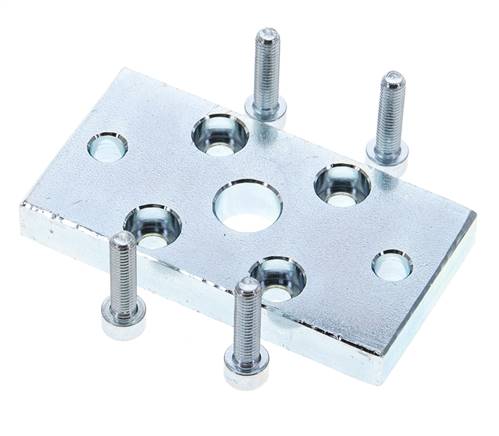

1 pc flange plate, incl. 4 fastening screws
Zinc plated steel
Scope of delivery:
1 pc flange plate, incl. 4 fastening screws
Properties
| for piston diameter [mm] | 25 |
| A [mm] | 40 |
| C [mm] | 26 |
| D [mm] | 76 |
| E [mm] | 60 |
| G [mm] | 10 |
| H [mm] | 5,4 |
| I [mm] | 6,6 |
| K [mm] | 5,5 |
| L [mm] | 10 |
| M [mm] | 12 |
Further information on NXB25
| Weight | 200 g / pcs |
| GTIN | 4050571526542 |
| Customs duty number | 76169990 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
Documents
- Catalogue page Atlas 9 (Page 858) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
