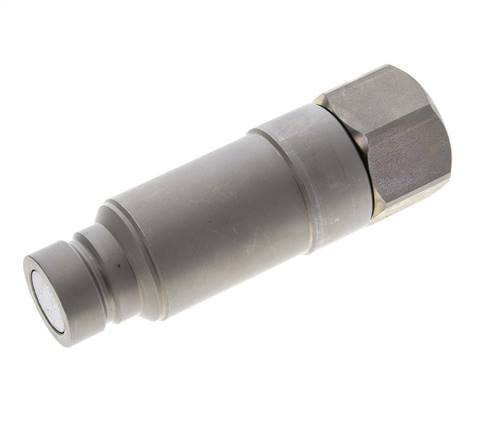

Flat-Face plug with pressure eliminator, G 1", Sizes 4
Item number:
FFS 10/4 DE
Item description
Materials:
zinc plated steel, seal: NBR
Temperature range:
-30 to +100 °C
Advantages:
• Next to the advantages of flat-faced couplings, the flat-face plug with pressure eliminator allows coupling on the plug side under static pressure (for example with decoupled components where a pressure has built up, for example due to sun irradiation).
• Fully compatible to the flat-face standard couplings
zinc plated steel, seal: NBR
Temperature range:
-30 to +100 °C
Advantages:
• Next to the advantages of flat-faced couplings, the flat-face plug with pressure eliminator allows coupling on the plug side under static pressure (for example with decoupled components where a pressure has built up, for example due to sun irradiation).
• Fully compatible to the flat-face standard couplings
Properties
| Thread internal | G 1" |
| A [mm] | 30,0 |
| DN (ISO) [mm] | 19 |
| size | 4 |
| PN [bar] | 400 |
Further information on FFS10/4DE
| Weight | 700 g / pcs |
| GTIN | 4050571296582 |
| Customs duty number | 84812010 |
| Manufacturer | Cejn |
Documents
- Catalogue page Atlas 9 (Page 324) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
