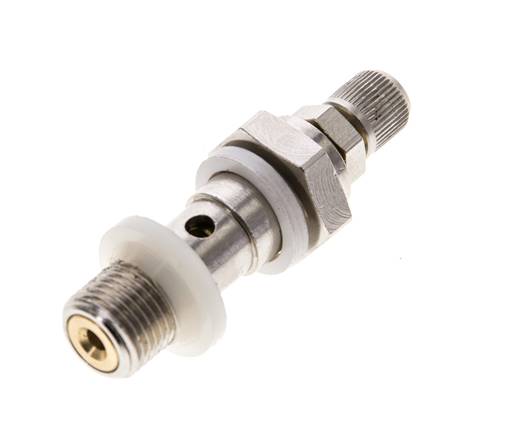

Flow control banjo bolt G 1/8", Supply air flow controlling (A), Knurled screw and locking nut (can
Item number:
GRLA 1/8 KOR
Item description
Temperature range:
-20 to +80 °C
Operating pressure:
0,2 to 10 bar
Advantages:
•compact design,
•captive marking on key surface shows the function of the banjo bolt even after years of use (B-exhaust, A-supply, C-supply and exhaust)
Type B - exhaust regulating (standard):
Flow:
Restricted flow from thread to ring piece
Recommended use:
For cylinder from Ø 16 mm
Advantages:
•Good operating options without jumping,
•Smooth operation,
•Forward and return strokes possible at different speeds
Type A - supply air regulating (special version):
Flow:
Restricted flow from the ring piece to the thread
Recommended use:
For small cylinder Ø and short strokes (small volumes)
Advantages:
•even small air volumes can be controlled,
•forward and return strokes at different speeds possible
Type C - supply and exhaust air control (special version):
Flow throttled in both directions
Recommended use:
For small and single-acting cylinder
Advantages:
•Inlet and return flow same speeds
Disadvantages:
•may cause the cylinder to jump
Materials:
Body: nickel-plated brass, seal: NBR, sealing and spacer ring: plastic
Scope of delivery:
Banjo bolt with integrated valve including gasket and spacer ring
-20 to +80 °C
Operating pressure:
0,2 to 10 bar
Advantages:
•compact design,
•captive marking on key surface shows the function of the banjo bolt even after years of use (B-exhaust, A-supply, C-supply and exhaust)
Type B - exhaust regulating (standard):
Flow:
Restricted flow from thread to ring piece
Recommended use:
For cylinder from Ø 16 mm
Advantages:
•Good operating options without jumping,
•Smooth operation,
•Forward and return strokes possible at different speeds
Type A - supply air regulating (special version):
Flow:
Restricted flow from the ring piece to the thread
Recommended use:
For small cylinder Ø and short strokes (small volumes)
Advantages:
•even small air volumes can be controlled,
•forward and return strokes at different speeds possible
Type C - supply and exhaust air control (special version):
Flow throttled in both directions
Recommended use:
For small and single-acting cylinder
Advantages:
•Inlet and return flow same speeds
Disadvantages:
•may cause the cylinder to jump
Materials:
Body: nickel-plated brass, seal: NBR, sealing and spacer ring: plastic
Scope of delivery:
Banjo bolt with integrated valve including gasket and spacer ring
Properties
| Version | Supply air flow controlling (A) |
| Setting | Knurled screw and locking nut (can be adjusted without a tool and locked using an open-end wrench) |
| Thread | G 1/8" |
| Shaft length [mm] | 25,5 |
Further information on GRLA1/8KOR
| Weight | 22 g / pcs |
| GTIN | 4050571340889 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
