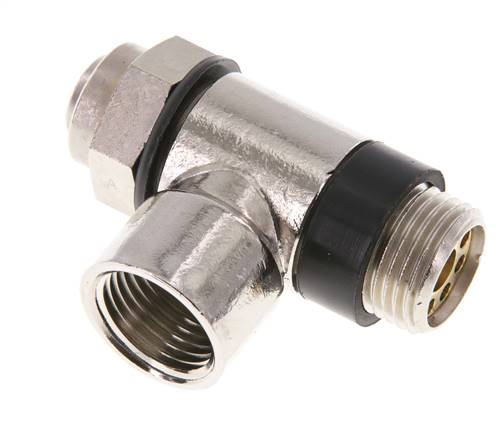

Flow control silencer G 1/2", Supply air flow controlling (A)
Item number:
GRLA 12 MSV
Item description
Temperature range:
-20 to +80 °C
Operating pressure:
0,2 to 10 bar
Advantages:
•compact design,
•captive marking on key surface shows the function of the banjo bolt even after years of use (B-exhaust, A-supply, C-supply and exhaust)
Type B - exhaust regulating (standard):
Flow:
Restricted flow from thread to ring piece
Recommended use:
For cylinder from Ø 16 mm
Advantages:
•Good operating options without jumping,
•Smooth operation,
•Forward and return strokes possible at different speeds
Type A - supply air regulating (special version):
Flow:
Restricted flow from the ring piece to the thread
Recommended use:
For small cylinder Ø and short strokes (small volumes)
Advantages:
•even small air volumes can be controlled,
•forward and return strokes at different speeds possible
Type C - supply and exhaust air control (special version):
Flow throttled in both directions
Recommended use:
For small and single-acting cylinder
Advantages:
•Inlet and return flow same speeds
Disadvantages:
•may cause the cylinder to jump
Materials:
Banjo bolt: nickel-plated brass, banjo: nickel-plated brass, seals: NBR, sealing and spacer ring: plastic
-20 to +80 °C
Operating pressure:
0,2 to 10 bar
Advantages:
•compact design,
•captive marking on key surface shows the function of the banjo bolt even after years of use (B-exhaust, A-supply, C-supply and exhaust)
Type B - exhaust regulating (standard):
Flow:
Restricted flow from thread to ring piece
Recommended use:
For cylinder from Ø 16 mm
Advantages:
•Good operating options without jumping,
•Smooth operation,
•Forward and return strokes possible at different speeds
Type A - supply air regulating (special version):
Flow:
Restricted flow from the ring piece to the thread
Recommended use:
For small cylinder Ø and short strokes (small volumes)
Advantages:
•even small air volumes can be controlled,
•forward and return strokes at different speeds possible
Type C - supply and exhaust air control (special version):
Flow throttled in both directions
Recommended use:
For small and single-acting cylinder
Advantages:
•Inlet and return flow same speeds
Disadvantages:
•may cause the cylinder to jump
Materials:
Banjo bolt: nickel-plated brass, banjo: nickel-plated brass, seals: NBR, sealing and spacer ring: plastic
Properties
| Version | Supply air flow controlling (A) |
| Setting | Slotted screw (can be adjusted using a screwdriver) |
| Thread external | G 1/2" |
| Thread internal | G 1/2" |
Further information on GRLA12MSV
| Weight | 190 g / pcs |
| GTIN | 4050571340902 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 797) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
