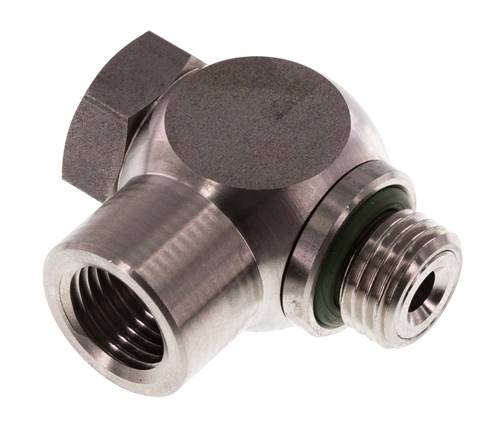

Flow control silencer G 1/4", Exhaust air flow controlling (B)

Materials:
Hohlschraube: 1.4571, Ringstück: 1.4571, Dichtungen: FKM / PTFE

Temperature range:
-20°C to +150°C

Operating pressure:
0,2 - 10 bar

Media:
Oiled and unoiled compressed air, as well as non-toxic gasses (50 µm)

Advantages:
•Compact design,
•Undetachable marking on width flat shows the use and function of the banjo bolt even after years (B-exhaust air flow controlling, A-supply air flow controlling, C-exhaust and supply air flow controlling)

Typ B - abluftregelnd (Standard):


Flow:
Vom Gewinde zum Ringstück gedrosselter Durchfluss

Recommended use:
For cylinder from Ø 16 mm

Advantages:
•Good operating options without jumping,
•Smooth operation,
•Forward and return strokes possible at different speeds

Typ A - zuluftregelnd (Sonderausführung):


Flow:
Vom Ringstück zum Gewinde gedrosselter Durchfluss

Recommended use:
For smaller Ø and short strokes (small volumes)

Advantages:
•even small air volumes can be controlled,
•forward and return strokes at different speeds possible

Typ C - zu- und abluftregelnd (Sonderausführung):


Special version:
Durchfluss in beiden Richtungen gedrosselt

Recommended use:
For small and single-acting cylinder

Advantages:
•Inlet and return flow same speeds

Disadvantages:
•möglicherweise kann es bei dem Zylinder zum Springen kommen

Version	Exhaust air flow controlling (B)
Setting	Slotted screw (can be adjusted using a screwdriver)
Thread external	G 1/4"
Thread internal	G 1/4"

{{ $t('shop.all.gewicht') }}	80 g / pcs
{{ $t('shop.all.gtin') }}	4050571340476
{{ $t('shop.display.artikel.zollwarennummer') }}	84812090
{{ $t('shop.display.artikel.rohskonform') }}	{{ $t('shop.all.ja') }}
