Item description
Construction type:

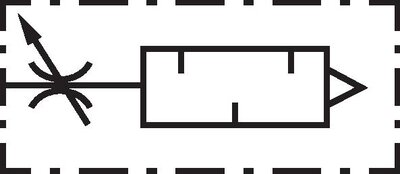

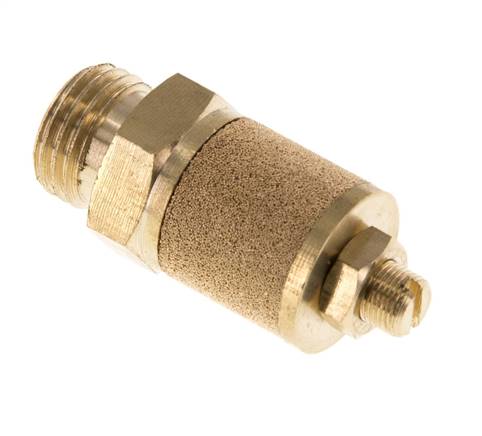

Taper throttle with silencer, escapement by lock nut
Application:
Exhaust air throttling in the exhaust air bore of a control valve.
Advantages:
•Affordable speed controller incl. silencer
Taper throttle with silencer, escapement by lock nut
Application:
Exhaust air throttling in the exhaust air bore of a control valve.
Advantages:
•Affordable speed controller incl. silencer
Properties
| Thread | G 1/4" |
| SW [mm] | 16 |
| L min. [mm] | 30 |
| L max. [mm] | 36 |
Further information on DS14
| Weight | 37 g / pcs |
| GTIN | 4050571274832 |
| Customs duty number | 84879090 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 793) (PDF)
- 2D-CAD-File (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
