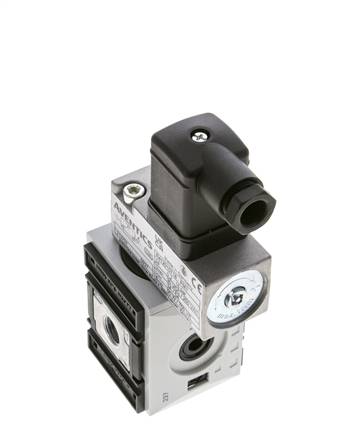

FUTURA Distributor with pressure switch, G 1/4", Futura 1
Item number:
VB CL 14 F-PE
Item description
Materials:
Body: PA 66 GF60, cover: POM, seals: NBR
Temperature range:
-10 to +50 °C
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•easy assembly of single components within a model series using coupling kits
Input pressure:
0 - 16 bar (model series 0: 0 - 12 bar)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 0 or distributor with pressure switch)
Optional:
pressure switch fitted at connection B (settings range: 0.2 - 16 bar, 1 x changer, DC: 12 - 30 V, max. 3 A/90 W, AC: 12 - 250 V, max. 5 A/750 VA, IP 65, plug size 3 (4-pin)) -PE
Body: PA 66 GF60, cover: POM, seals: NBR
Temperature range:
-10 to +50 °C
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•easy assembly of single components within a model series using coupling kits
Input pressure:
0 - 16 bar (model series 0: 0 - 12 bar)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 0 or distributor with pressure switch)
Optional:
pressure switch fitted at connection B (settings range: 0.2 - 16 bar, 1 x changer, DC: 12 - 30 V, max. 3 A/90 W, AC: 12 - 250 V, max. 5 A/750 VA, IP 65, plug size 3 (4-pin)) -PE
Properties
| Version | Distributor with pressure switch |
| Model series | Futura 1 |
| Thread P/A (inlet/outlet) | G 1/4" |
| Thread at outflow C (top) | G 1/4" |
| Thread at outflow D (front) | G 1/4" |
| Flow P-A [l/min] | 2700 |
| Flow P-B [l/min] | 2000 |
| Flow P-C [l/min] | 2000 |
| Flow P-D [l/min] | 900 |
| H [mm] | 66 |
| H1 [mm] | 31 |
| L [mm] | 52 |
| Mounting brackets | W 1 F |
| Coupling kit | KP 1 F |
| Coupling kit with wall console | KPW 1 F |
| input pressure [bar] | 0 - 16 |
| Settings range of the pressure switch [bar] | 0,2 - 16 |
Further information on VBCL14F-PE
| Weight | 420 g / pcs |
| GTIN | 4050571891473 |
| Customs duty number | 84818099 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 575) (PDF)
- Documentation (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
