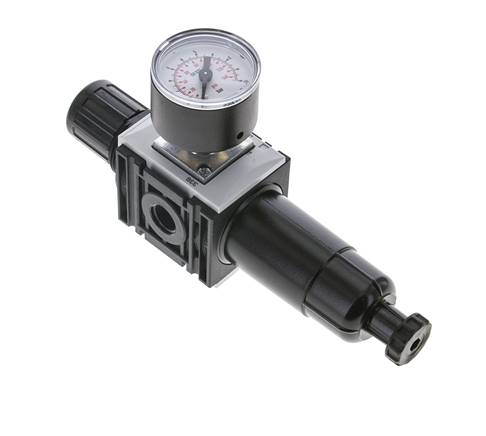

FUTURA filter regulator, G 1/4", 0,5 to 8 bar, model series 0
Item number:
FR 014 FB M
Item description
Version:
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter
Materials:
Body: PA 66 GF60, spring hood: POM, diaphragms and seals: NBR, condensate container: polycarbonate
Temperature range:
-10 to +50 °C
Input pressure:
1.5 - 16 bar (model series 0: 1.5 - 12 bar)
Condensate draining:
semi-automatic**
Pressure gauge connection:
G 1/4" (model series 0: G 1/8")
Pore width in the filter:
5 µm
Media:
Compressed air, neutral gases
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20 (model series 0 cannot be locked).
Max. condensate amount:
16 cm³
Switch panel thread:
M 30x1,5
Scope of delivery:
Filter regulator including pressure gauge
Flow:
1000 l/min, secondary relieving: 25 l/min
Optional:
Version with metal bowl and without inspection tube -M, automatic discharge -AM, automatic discharge closed when not pressurised (0 to 12 bar) -AMNC
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter
Materials:
Body: PA 66 GF60, spring hood: POM, diaphragms and seals: NBR, condensate container: polycarbonate
Temperature range:
-10 to +50 °C
Input pressure:
1.5 - 16 bar (model series 0: 1.5 - 12 bar)
Condensate draining:
semi-automatic**
Pressure gauge connection:
G 1/4" (model series 0: G 1/8")
Pore width in the filter:
5 µm
Media:
Compressed air, neutral gases
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20 (model series 0 cannot be locked).
Max. condensate amount:
16 cm³
Switch panel thread:
M 30x1,5
Scope of delivery:
Filter regulator including pressure gauge
Flow:
1000 l/min, secondary relieving: 25 l/min
Optional:
Version with metal bowl and without inspection tube -M, automatic discharge -AM, automatic discharge closed when not pressurised (0 to 12 bar) -AMNC
Properties
| Version | Filter regulator with 40 mm standard pressure gauge |
| Thread | G 1/4" |
| Pressure regulation range [bar] | 0,5 - 8 |
| Container design | Metal bowl without inspection tube |
| Condensate drain | Semi-automatic |
| Pressure gauge display [bar] | 0 - 10 |
| Mounting brackets | W 0 F |
| Coupling kit | KP 0 F |
| Coupling kit with wall console | KPW 0 F |
| input pressure [bar] | 1,5 - 12 |
Further information on FR014FBM
| Weight | 340 g / pcs |
| GTIN | 4050571891381 |
| Customs duty number | 84811005 |
| RoHS compliant | Yes |
YouTube videos:
Documents
*Standard series, please prefer for use, since the pressure control range is universally usable, **As soon as the input pressure drops below the min. input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented, *** assembly of a standard pressure gauge only possible with pressure gauge adapter, display range of the compact pressure gauge: 0 - 12 bar, or 0 - 6 bar as applicable
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
