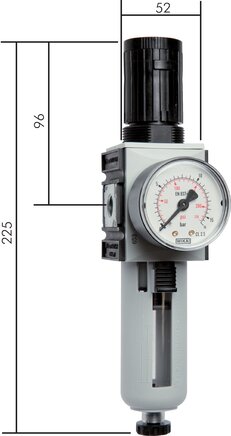

FUTURA filter regulator, G 1/4", 0,5 to 8 bar, model series 1

Version:
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter

Materials:
Body: PA 66 GF60, spring hood: POM, diaphragms and seals: NBR, condensate container: polycarbonate

Temperature range:
-10°C to +50°C

Input pressure:
1.5 - 16 bar (model series 0: 1.5 - 12 bar)

Condensate draining:
semi-automatic**

Pressure gauge connection:
G 1/4" (model series 0: G 1/8")

Pore width in the filter:
5 µm

Media:
Compressed air, neutral gases

Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20 (model series 0 cannot be locked).

Max. condensate amount:
28 cm³

Switch panel thread:
M 36x1,5

Scope of delivery:
Pressure regulator including 50 mm pressure gauge

Flow:
G 1/4" 2000 l/min G 3/8" 2500 l/min, secondary relieving: 70 l/min

ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

Optional:
Version with metal bowl and inspection tube -M, automatic discharge -AM, automatic discharge closed when not pressurised (0 to 16 bar) -AMNC, Safety version: with upstream lockable ball valve and filler valve -Si

Version	Filter regulator
Thread	G 1/4"
Pressure regulation range [bar]	0.5 - 8
Container design	Plastic container with protective cage
Condensate drain	Semi-automatic
Pressure gauge display [bar]	0 - 10
Mounting brackets	W 1 F
Coupling kit	KP 1 F
Coupling kit with wall console	KPW 1 F
input pressure [bar]	1.5 - 16

{{ $t('shop.all.gewicht') }}	430 g / pcs
{{ $t('shop.all.gtin') }}	4050571306205
{{ $t('shop.display.artikel.zollwarennummer') }}	84811005
{{ $t('shop.display.artikel.rohskonform') }}	{{ $t('shop.all.ja') }}
