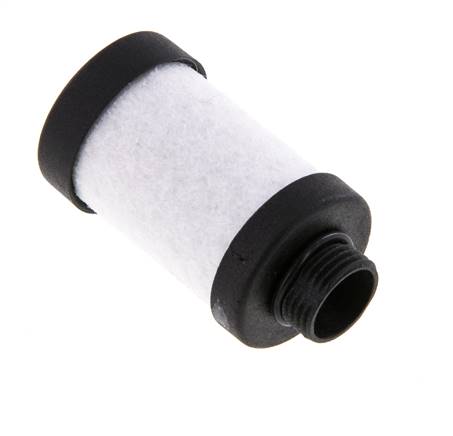

FUTURA Replacement filter 0.3 µm , Futura 0 / Multifix 0
Item number:
V 23/35
Item description
Materials:
Body: PA 66 GF60, seals: NBR, condensate container: polycarbonate
Temperature range:
-10 to +50 °C
Input pressure:
1.5 - 16 bar (model series 0: 1.5 - 12 bar)
Condensate draining:
Semi-automatic** (activated carbon filter without drainage)
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 0 or differential pressure indicator / differential pressure gauge)
Advantages:
•simple assembly of single components using coupling kits within a model series.
Application:
Pre-filters are used where high demands are placed on the purity of the compressed air. Fine particles (> 0.3 µm) are separated here. Pre-filters are also used to increase the service life of fine filters.
Dust removal:
> 0,3 µm (99,99 %)
Optional:
Version with metal bowl and inspection tube (model series 0: without inspection tube) -M, automatic discharge -AM, automatic discharge closed when not pressurised (0 to 16 bar, model series 0: 0 - 12 bar) -AMNC
Body: PA 66 GF60, seals: NBR, condensate container: polycarbonate
Temperature range:
-10 to +50 °C
Input pressure:
1.5 - 16 bar (model series 0: 1.5 - 12 bar)
Condensate draining:
Semi-automatic** (activated carbon filter without drainage)
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 0 or differential pressure indicator / differential pressure gauge)
Advantages:
•simple assembly of single components using coupling kits within a model series.
Application:
Pre-filters are used where high demands are placed on the purity of the compressed air. Fine particles (> 0.3 µm) are separated here. Pre-filters are also used to increase the service life of fine filters.
Dust removal:
> 0,3 µm (99,99 %)
Optional:
Version with metal bowl and inspection tube (model series 0: without inspection tube) -M, automatic discharge -AM, automatic discharge closed when not pressurised (0 to 16 bar, model series 0: 0 - 12 bar) -AMNC
Properties
| Version | Replacement filter 0.3 µm |
| Model series | Futura 0 / Multifix 0 |
Further information on V23/35
| Weight | 20 g / pcs |
| GTIN | 4050571714451 |
| Customs duty number | 84219990 |
| RoHS compliant | Yes |
Documents
*at 6 bar input pressure and 0,02 bar pressure loss, **As soon as the input pressure falls below the minimum. input pressure, the drain valve opens automatically. The semi-automatic drain valve can be prevented from opening by screwing the drain screw tight.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
