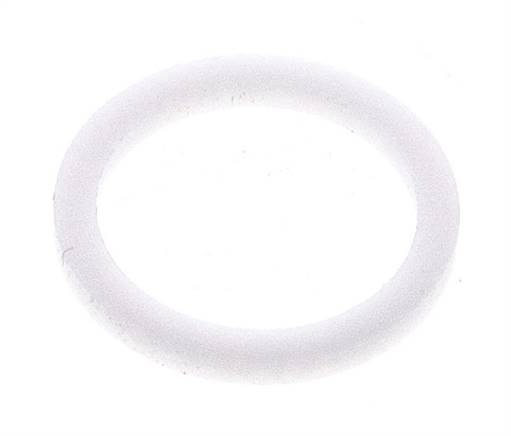

Item description
Materials:
PTFE (FDA 21 CFR 177.1550)
Temperature range:
-200 to +220 °C, chambered up to +270°C
Operating pressure:
temperature-dependent
PTFE (FDA 21 CFR 177.1550)
Temperature range:
-200 to +220 °C, chambered up to +270°C
Operating pressure:
temperature-dependent
Properties
| for threads | G 3/8" |
| Inner diameter [mm] | 17 |
| Outer diameter [mm] | 21,5 |
| Height [mm] | 2 |
Further information on DR38TE
| Weight | 0,6 g / pcs |
| GTIN | 4050571266332 |
| Customs duty number | 39269097 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 1011) (PDF)
- Documentation: FDA statement (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
