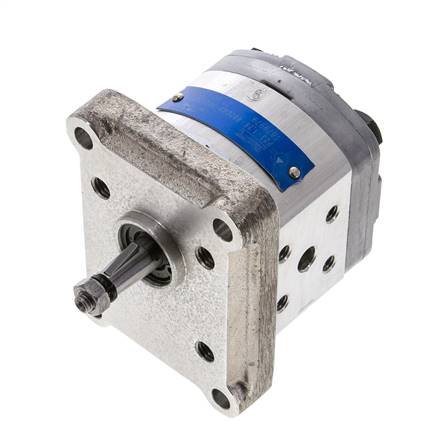

Gear pump 1,2 ccm, Plessey flange, clockwise rotation
Item number:
ZP1PF1KR1,2F
Item description
Materials:
Body: Aluminium, mounting flange: Aluminium or steel, seals: NBR
Temperature range:
-15 to +60 °C (medium: -15 to +80 °C)
Media:
Hydraulic oils on the basis of mineral oil
Operating range:
Industrial hydraulics and mobile hydraulics
Mounting:
4-hole flange (52.4 x 71.9) - European standard flange (Plessey flange), size 1
Centering diameter:
25,4
Drive shaft:
Taper 1:8, M 6 (Ø 10 measured at shaft outlet)
Suction connection:
Pump flange LK 30 (bolt circle 30, 4x M 6 FT)
Pressure connection:
Pump flange LK 30 (bolt circle 30, 4x M 6 FT)
Bohrungsanordnung Pumpenflansche:
deutsch
Body: Aluminium, mounting flange: Aluminium or steel, seals: NBR
Temperature range:
-15 to +60 °C (medium: -15 to +80 °C)
Media:
Hydraulic oils on the basis of mineral oil
Operating range:
Industrial hydraulics and mobile hydraulics
Mounting:
4-hole flange (52.4 x 71.9) - European standard flange (Plessey flange), size 1
Centering diameter:
25,4
Drive shaft:
Taper 1:8, M 6 (Ø 10 measured at shaft outlet)
Suction connection:
Pump flange LK 30 (bolt circle 30, 4x M 6 FT)
Pressure connection:
Pump flange LK 30 (bolt circle 30, 4x M 6 FT)
Bohrungsanordnung Pumpenflansche:
deutsch
Properties
| Displacement volume per revolution [cm³] | 1,2 |
| Delivery rate at 1450 rpm* [l/min] | 1,7 |
| Continuous pressure max. [bar] | 280 |
Further information on ZP1PF1KR1,2F
| Weight | 850 g / pcs |
| GTIN | 4050571816049 |
| Customs duty number | 84136031 |
Documents
- Catalogue page Atlas 9 (Page 824) (PDF)
- Data sheet (Print view)
*reference value for the assembly design is calculated with 95% volumetric efficiency
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
