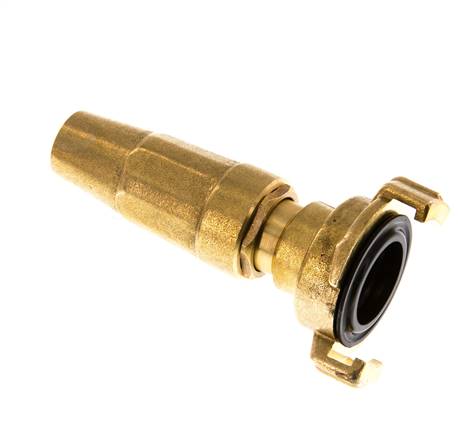

Item description
Materials:
Bodies: Brass or stainless steel 1.4408, seals: NBR, (Stainless steel: FKM)
Temperature range:
0°C to max. +80°C (Stainless steel: -20°C to max. +200°C)
Operating pressure:
-0,95 to 25 bar
Media:
Water, air, bases, oil and drinking water (only brass type with KTW)
Bodies: Brass or stainless steel 1.4408, seals: NBR, (Stainless steel: FKM)
Temperature range:
0°C to max. +80°C (Stainless steel: -20°C to max. +200°C)
Operating pressure:
-0,95 to 25 bar
Media:
Water, air, bases, oil and drinking water (only brass type with KTW)
Properties
| Sizes | 3/4" |
| Nozzle diameter [mm] | 6,4 |
| DN [mm] | 14 |
| Length L approx. [mm] | 95 |
| Replacement seals (NBR) | GKOR |
| Temperature range [°C] | 0 to +80 |
Further information on GSKSPR34
| Weight | 260 g / pcs |
| GTIN | 4050571165208 |
| Customs duty number | 84242000 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 339) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
