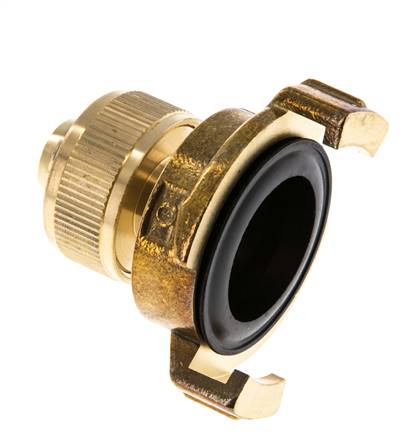

Item description
Materials:
Body: Brass, seal: NBR, compression ring: Polyamide
Temperature range:
0 to +60 °C
Operating pressure:
0 to 8 bar
Media:
Water
Advantages:
• Multiple assembly possible,
•no build up of dirt pockets,
•no danger or injury by sharp corners and edges
Body: Brass, seal: NBR, compression ring: Polyamide
Temperature range:
0 to +60 °C
Operating pressure:
0 to 8 bar
Media:
Water
Advantages:
• Multiple assembly possible,
•no build up of dirt pockets,
•no danger or injury by sharp corners and edges
Properties
| Hose diameter (inner) [mm] | 13 (1/2") |
| Replacement seals (NBR) | GKOR |
Further information on GSKWS13MS
| Weight | 125 g / pcs |
| GTIN | 4050571343354 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 337) (PDF)
- 3D CAD file (surface model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
