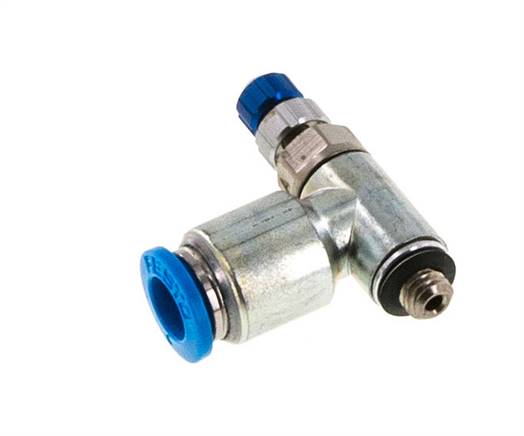

Properties
| Valve function | Exhaust air flow control return function |
| Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | M5 |
| Setting element | knurled screw |
| Fastening type | Screwable |
| Normal nominal flow in one-way flow control [l/min] | 115 |
| Normal nominal flow in check valve direction [l/min] | 70 to 110 |
| Operating pressure [bar] | 0.2 to 10 |
| ambient temperature [°C] | -10 to 60 |
| Maritime classification | see Certificate |
| installation position | arbitrary |
| Normal flow In one-way flow control 6 -> 0 bar [l/min] | 185 |
| Normal flow In check valve direction 6 -> 0 bar [l/min] | 145 to 170 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Medium temperature [°C] | -10 to 60 |
| Stud material | Brass |
| Material information | RoHs compliant |
| Seals material | NBR |
| Regulation screw material | High-alloyed stainless steels |
| Swivel connection material |
Chromatised, Zinc pressure cast |
| Operating pressure complete temperature range [bar] | 0.2 to 10 |
| Nominal tightening torque [Nm] | 0,8 |
| Sleeve material | POM |
Further information on OT-FESTO011860
| Weight | 16 g / pcs |
| GTIN | 4052568045333 |
| Customs duty number | 84812090 |
| Manufacturer | Festo |
Documents
- Group data sheet: GRX-VFO (english) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
