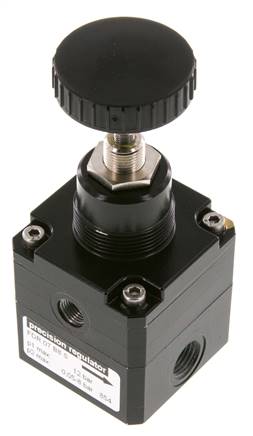

High-performance precision pressure regulator, G 1/4", 0,05 to 8 bar
Item number:
FDR 07-8
Item description
Application:
High performance precision pressure regulators are used in order to adjust an extremely accurate pressure - regardless of pre-pressure and flow performance. It is used for example for control and regulation units in process engineering, which has the highest pressure stability requirements. The precision pressure regulator convinces through low own air consumption and large relief system, both of which can be captured and discharged via a G 1/4" bore hole.
Version:
Precision pressure reducer, reversible (with secondary relieving) Collective relieving through G 1/4" borehole)
Materials:
Body: die-cast zinc, diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Input pressure:
max. 12 bar
Pressure gauge connection:
G 1/8"
Switch panel thread:
M 12x1 & M 30x1,5
Own air consumption:
< 0,5 l/min (at 8 bar input pressure)
Control accuracy:
± 2.5 mbar
Media:
fine-filtered compressed air (5 µm) & neutral gases, oil-free

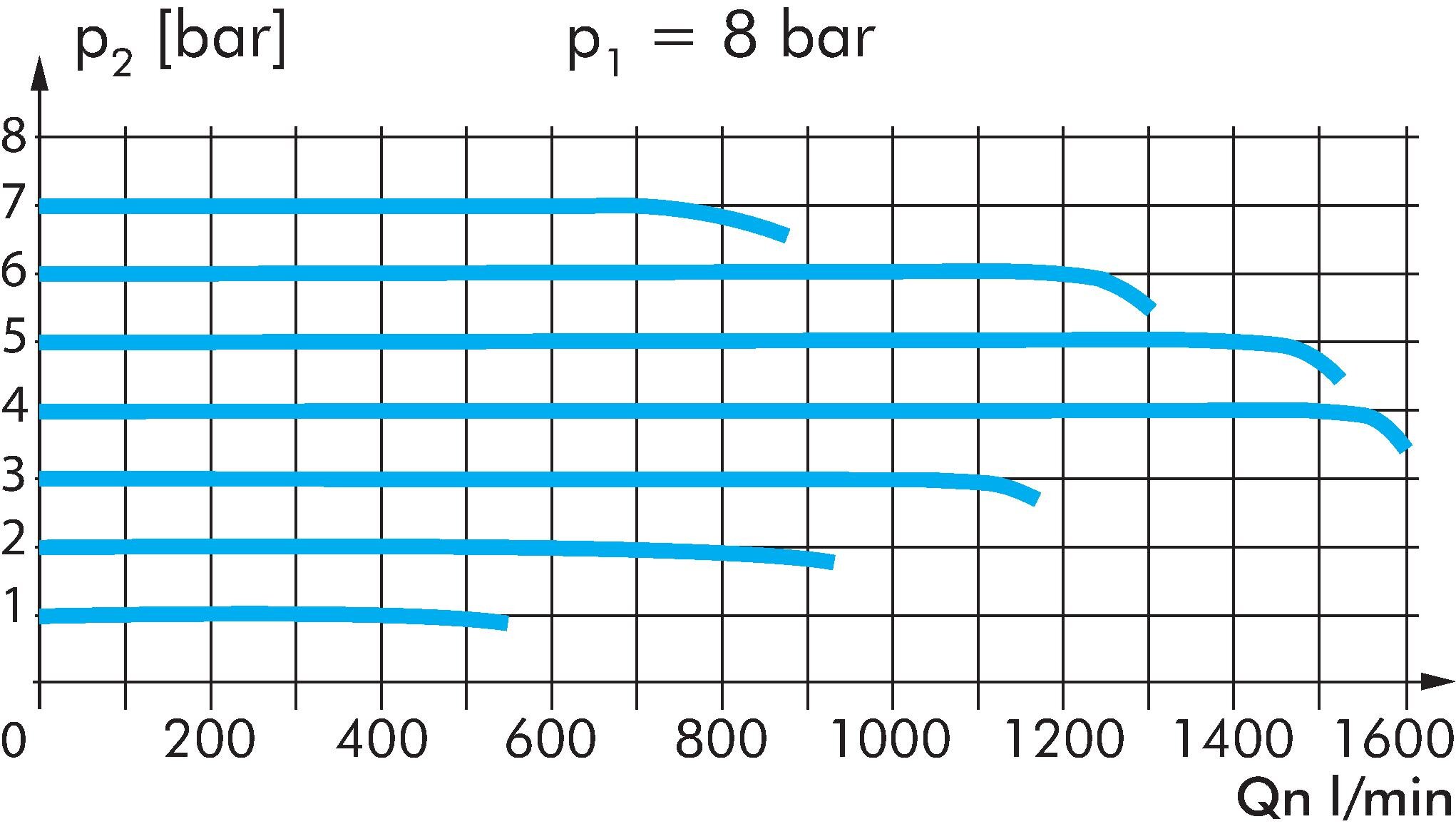

Flow:
1250 l/min, secondary vent: 500 l/min
Advantages:
•automatic venting in the event of overpressure on the secondary side up to 500 l/min,
•captured exhaust for relief system and own air consumption,
•high flow at constant pressure,
•most precise pressure regulation regardless of the pre-pressure and flow performance
Warning:
This device is supplied without a pressure gauge. We recommend ordering a suitable pressure gauge separately.
High performance precision pressure regulators are used in order to adjust an extremely accurate pressure - regardless of pre-pressure and flow performance. It is used for example for control and regulation units in process engineering, which has the highest pressure stability requirements. The precision pressure regulator convinces through low own air consumption and large relief system, both of which can be captured and discharged via a G 1/4" bore hole.
Version:
Precision pressure reducer, reversible (with secondary relieving) Collective relieving through G 1/4" borehole)
Materials:
Body: die-cast zinc, diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Input pressure:
max. 12 bar
Pressure gauge connection:
G 1/8"
Switch panel thread:
M 12x1 & M 30x1,5
Own air consumption:
< 0,5 l/min (at 8 bar input pressure)
Control accuracy:
± 2.5 mbar
Media:
fine-filtered compressed air (5 µm) & neutral gases, oil-free
Flow:
1250 l/min, secondary vent: 500 l/min
Advantages:
•automatic venting in the event of overpressure on the secondary side up to 500 l/min,
•captured exhaust for relief system and own air consumption,
•high flow at constant pressure,
•most precise pressure regulation regardless of the pre-pressure and flow performance
Warning:
This device is supplied without a pressure gauge. We recommend ordering a suitable pressure gauge separately.
Properties
| Thread | G 1/4" |
| Pressure regulation range [bar] | 0,05 - 8 |
| Mounting brackets | MW 1 |
Further information on FDR07-8
| Weight | 650 g / pcs |
| GTIN | 4050571852672 |
| Customs duty number | 84811099 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 613) (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
