Item description
Optional:
40 bar operating pressure (R thread) -40
40 bar operating pressure (R thread) -40
Properties

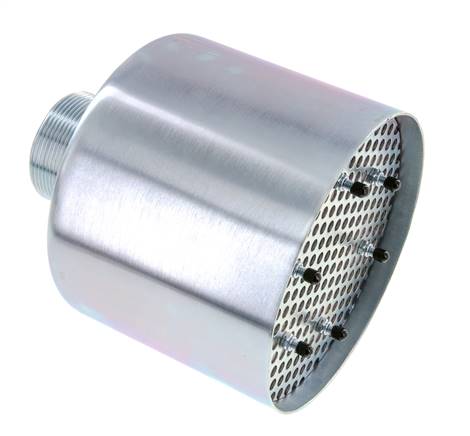

| Version | High-performance silencer |
| Thread | G 2" |
| D [mm] | 150 |
| L [mm] | 144 |
| Flow* [m³/min] | 56 |
| Flow* [l/min] | 56000 |
| Operating pressure [bar] | 6 |
| Spare filter sets | SDHE 112/20 |
Further information on SDH20
| Weight | 1,7 kg / pcs |
| GTIN | 4050571856342 |
| Customs duty number | 84818079 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 792) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*at 6 bar
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
