Item description
Version:

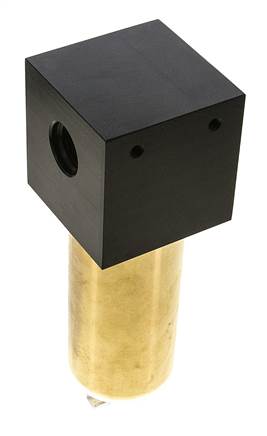

Filtering using the centrifugal principal and sintered filter
Materials:
Body: aluminium, container: brass, filter insert: sintered bronze
Temperature range:
0 to +90 °C
Input pressure:
0 to 60 bar
Condensate draining:
manual
Media:
Compressed air, neutral gases
Filtering using the centrifugal principal and sintered filter
Materials:
Body: aluminium, container: brass, filter insert: sintered bronze
Temperature range:
0 to +90 °C
Input pressure:
0 to 60 bar
Condensate draining:
manual
Media:
Compressed air, neutral gases
Properties
| Version | High-pressure filter up to 60 bar (40 µm) |
| Thread | G 1/2" |
| Flow* [l/min] | 2660 |
| Mounting brackets | BW 2040 |
| Replacement filter | FILTER 2040 |
| Max. condensate amount [cm³] | 80 |
| H [mm] | 185 |
| H1 [mm] | 160 |
| L [mm] | 65 |
Further information on DF2360
| Weight | 1,4 kg / pcs |
| GTIN | 4050571247430 |
| Customs duty number | 84213925 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 615) (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- Declaration of Conformity (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*measured at P1 = 6 bar and 0.2 bar pressure drop
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
