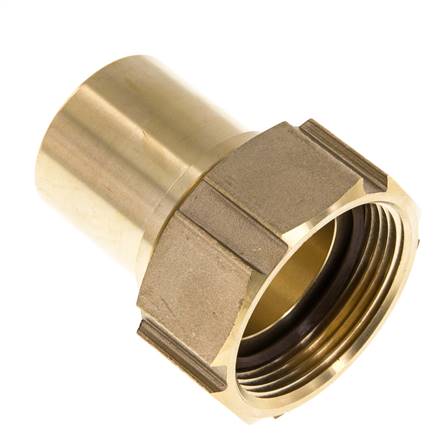

Hose screw connection, EN14420-5 G 1-1/2"-38 (1-1/2")mm, Brass
Item number:
STTW 11238 MS
Item description
Materials:
Seal: Polyurethane (1.4408: PTFE)
Operating pressure:
25 bar
Version:

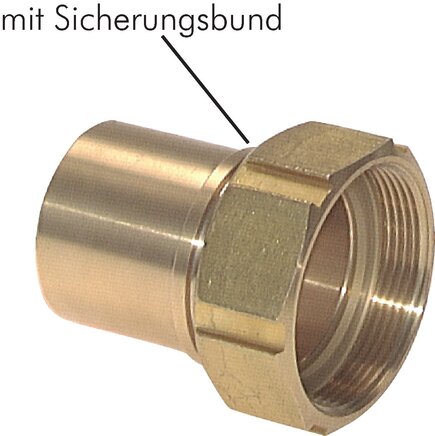

flat sealing hose connections smooth with safety collar
Note:
The hose assembly is carried out using shell hose clamps to EN 14420-3 (DIN 2817)
Seal: Polyurethane (1.4408: PTFE)
Operating pressure:
25 bar
Version:
flat sealing hose connections smooth with safety collar
Note:
The hose assembly is carried out using shell hose clamps to EN 14420-3 (DIN 2817)
Properties
| Material | Brass |
| Thread | G 1-1/2" |
| Hose diameter (inner) [mm] | 38 (1-1/2") |
| Accessories Hose clamp | SSA 52 / SSA 56 / SSA 60 |
| Replacement seals | STTW DR 112 |
| Temperature range [°C] | -40 to +80 |
Further information on STTW11238MS
| Weight | 300 g / pcs |
| GTIN | 4050571649005 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 126a) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
