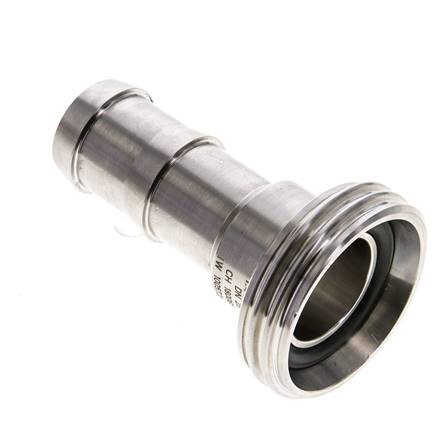

Hose thread connection (dairy thread) Rd 52 x 1/6"-25 (1")mm
Item number:
GTMA 1025 ES
Item description
Materials:
1.4404, seal: EPDM (FDA 21 CFR 177.2600 and (EC) 1935/2004)
1.4404, seal: EPDM (FDA 21 CFR 177.2600 and (EC) 1935/2004)
Properties
| Material | 1.4404 |
| Hose diameter (inner) [mm] | 25 (1") |
| RD | Rd 52 x 1/6" |
| DN [mm] | 25 |
Further information on GTMA1025ES
| Weight | 180 g / pcs |
| GTIN | 4050571347000 |
| Customs duty number | 73072910 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 214) (PDF)
- Documentation (PDF)
- Documentation: FDA statement (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
