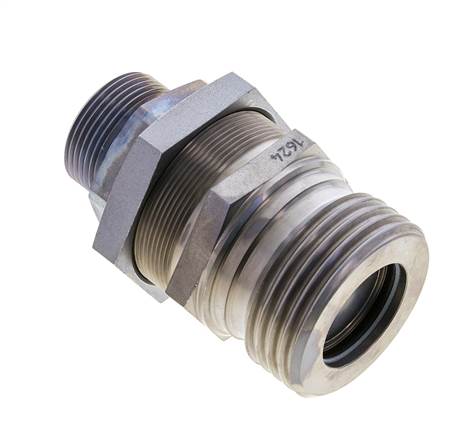

Hydraulic pipeline coupling, Sleeve Size.6, 25 S (M36x2)
Item number:
642022.6
Item description
Function:
Pipeline coupling lock on plug and on the sleeve in uncoupled condition. The connection of the coupling sleeve and coupling plug is carried out via a screw connection with hand nut. When uncoupling the valves, the valves close before the coupling halves separate. Therefore an air inlet in the pipelines is prevented. The coupling and uncoupling is done almost without oil leaks. Can be coupled manually up to 20 bar under pressure (with tools even higher coupling pressures possible)
Materials:
zinc plated steel, seal: NBR / PTFE
Temperature range:
-20 to +100 °C
Advantages:
•no entry of air during coupling procedure - the system need not be vented,
•connection of pipes without any oil leaks,
•plug and sleeve can be loaded up to the full operating pressure even uncoupled,
•sleeve is equipped with a bulkhead thread
Pipeline coupling lock on plug and on the sleeve in uncoupled condition. The connection of the coupling sleeve and coupling plug is carried out via a screw connection with hand nut. When uncoupling the valves, the valves close before the coupling halves separate. Therefore an air inlet in the pipelines is prevented. The coupling and uncoupling is done almost without oil leaks. Can be coupled manually up to 20 bar under pressure (with tools even higher coupling pressures possible)
Materials:
zinc plated steel, seal: NBR / PTFE
Temperature range:
-20 to +100 °C
Advantages:
•no entry of air during coupling procedure - the system need not be vented,
•connection of pipes without any oil leaks,
•plug and sleeve can be loaded up to the full operating pressure even uncoupled,
•sleeve is equipped with a bulkhead thread
Properties
| Version | Sleeve |
| Model series | heavy model series |
| Tube connection | 25 S (M36x2) |
| Thread A | M 54x4 round |
| Journal diameter B [mm] | 32,0 |
| size | 6 |
| Bulkhead thread | M 54x1,5 |
| max. bulkhead thickness [mm] | 17 |
| PN [bar] | 350 |
Further information on 642022.6
| Weight | 950 g / pcs |
| GTIN | 4050571208301 |
| Customs duty number | 84812010 |
Documents
- Catalogue page Atlas 9 (Page 330) (PDF)
- Data sheet (Print view)
*Plug uncoupled max. 330 bar
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
