Item description
Application:
Bidirectional flow control valves and one way flow control valves influence the volume flow rate via an adjustable cross section constriction and are used to adjust the speed of cylinders or motors.
Materials:
valve body: zinc-plated steel, rotary knob: polyamide, seals: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 350 bar
Media:
Hydraulic oils on the basis of mineral oil
Bidirectional flow control valves and one way flow control valves influence the volume flow rate via an adjustable cross section constriction and are used to adjust the speed of cylinders or motors.
Materials:
valve body: zinc-plated steel, rotary knob: polyamide, seals: NBR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 350 bar
Media:
Hydraulic oils on the basis of mineral oil
Properties

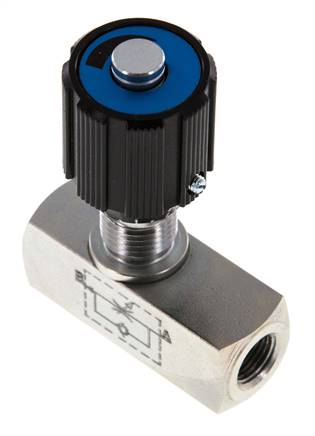

| Version | Hydraulic throttle check valve |
| Connection thread | G 1/8" |
| Practical flow quantity [l/min] | 10 |
| Max. flow amount [l/min] | 20 |
| Free reflux B - A at 5 bar pressure drop [l/min] | 25 |
| Installation set for panel mounting | DV EINBAUSET 18 |
| A [mm] | 56 |
| B [mm] | 51 |
| C [mm] | 8,0 |
| D [mm] | 16 |
| E [mm] | 26,0 |
| F [mm] | 45 |
| G [mm] | 24 |
| J | PG 7 |
Further information on DRV18HD
| Weight | 105 g / pcs |
| GTIN | 4050571273798 |
| Customs duty number | 84818081 |
